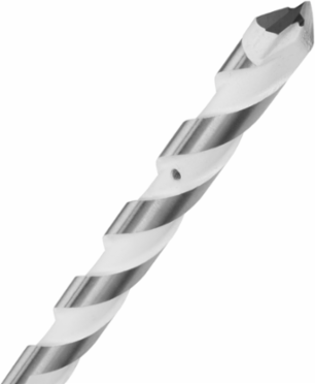

5/16 Inch x 18 Inch SHOCKWAVE Carbide Bellhanger Bit, 0.25 Inch Hex Shank
Milwaukee Tool

Milwaukee Tool 48-20-8862 5/16 Inch x 18 Inch SHOCKWAVE Carbide Bellhanger Bit, 0.25 Inch Hex Shank

  • MPN: 48-20-8862
  • UPC: 045242798483
  • PPN: MIL-48-20-8862
  • UNSPSC: 20111614

CAD

$17.35

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The MILWAUKEE® SHOCKWAVE™ Impact Duty Carbide Multi-Material Bellhanger Bits are the most versatile bellhanger bits, designed to tackle materials such as brick, block, concrete, steel, aluminum, ceramic tile, backerboard, wood, PVC, stucco, and drywall for small wire system installation. Designed with a hole in the tip for cable & wire pulling applications when installing computer, security, phone, and cable systems. These installer bits, standing at 18” in length, provide extra reach for complete through-hole applications. The bits feature an aggressive multi-grind carbide tip, which delivers up to 10x longer life in stacked materials and up to 85% faster drilling speeds in metal. Equipped with a 1/4" hex shank, these general-purpose bits are compatible with impacts, drill/drivers, and hammer drills. MILWAUKEE® SHOCKWAVE™ Impact Duty Multi-Material Bellhanger Bits provide the ideal all-in-one solution for wire-pulling applications.

Features

  • The Most Versatile Bellhanger Bit.
  • Designed with a pull-through hole in the tip for cable & wire pulling applications
  • For use with brick, block, concrete, steel, aluminum, ceramic tile, backer-board, wood, PVC, stucco, and drywall
  • Up to 10x longer life in stacked materials
  • Up to 85% faster in metal vs. standard masonry drill bits
  • For installing small wire systems including computer, security, phone, cable, and tv systems
  • SHOCKWAVE™ Impact Duty engineered for hammer drills and impacts
  • Durable carbide tip for a wide range of tough applications
  • Less bit changes for increased productivity
  • Use in hammer mode for faster drilling in masonry and concrete
  • 18” length for complete through-hole applications
  • ¼” hex shank for added tool versatility
  • Available in diameters ¼”, 5/16”, 3/8”, ½”

Specifications

Additional

Length
18.0 in
Shank Diameter
0.25 in (1/4 in hex)
Flute Length
16.0 in
Drilling Depth
16.0 in
Single / Double Ended
Single
Application
Brick, block, concrete, steel, aluminum, ceramic tile, backer board, wood, PVC, drywall
Recommended Safety Equipment
Safety Glasses, Mask
Bit Diameter5/16 in
Bit MaterialCarbide Tipped
Number of Flutes2
Bit TypeInstaller
Minimum Chuck Size Required1/4 in
Country of OriginChina
