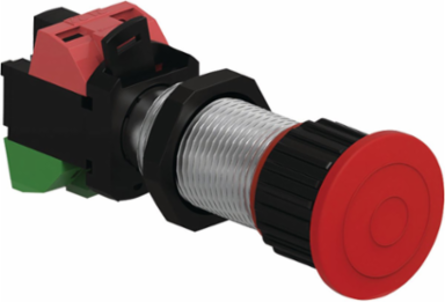

Killark GZMP1-RM3 Red Push Button Mushroom Head 40mm, 10A, Type 4X, 2 Poles
- MPN: GZMP1-RM3
- UPC: 783936176116
- PPN: HBL-GZMP1-RM3
CAD
$1970.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mushroom Head Push Button Red w/ 1 N.O./1 N.C (Push Pull) Actuator - Long Length 40mm, 3/4 NPSM
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread and M22x1.5 on request.
- Control operators can be grouped into a single assembly thus reducing installation time and cost.
- Killark GZ SERIES Operators are a component for use in conjunction with a Hazardous Location enclosure to provide control solutions for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified. ATEX/IECEx certified components. See Product Details for certificate numbers.
Specifications
Key Specifications
- Country of Origin
- Brazil
- Dimensions
- 4.2 in x 1.8 in x 1.8 in
- Height
- 1.8 in
- Weight
- 0.40 lb.
- Engineering Drawing 1 Display Text
- GZ Series Dimensional Drawings
- Amperage Rating
- 10 A
- Nema Rating
- Type 4X
- Type
- Push Button
- Class Code
- D25
- Harmonization Code
- 8536509035
- MSDS Flag
- No
- UL File Number
- E12379
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936176116
ColorRed
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22;II 2 G Ex db IIC/IIB+H2Gb;II 2 D Ex tb IIIC Db
Length4.2 in
Width1.8 in
ActionMaintained
Frequency Rating50/60 Hz
Number Of Poles2
ARRA CompliantContact Manufacturer
Freight Class Code06168002
Image Actual Or RepresentativeR
Sub Class CodeD25D250
SeriesGZ Series
BOX SIZE(in)
NAICS Code3359326103
