Schmersal 101159310 Metal Enclosure Actuator Switch 276 mm Height, IP65, Snap Action
- MPN: 101159310
- PPN: SCM-101159310
CAD
$454.57
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Metal Enclosure Actuator Switch 276 mm Height, IP65, Snap Action
Features
- Metal enclosure
- Long life

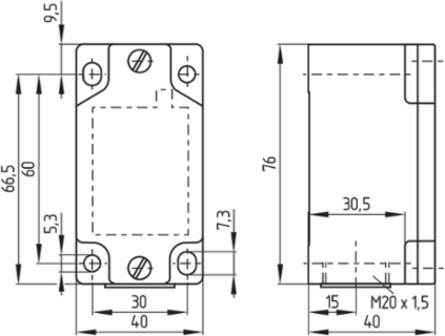

- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications

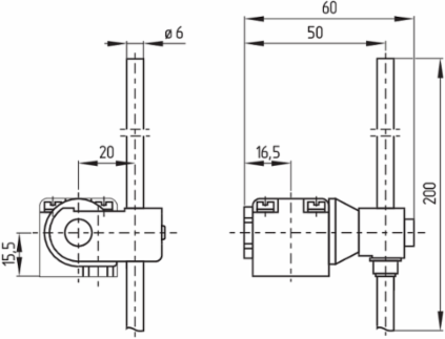

- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
- Epoxy resin rod
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 6 A |
|---|---|
| Utilisation category AC-15 | 2.5 A |
| Note (Switching element) | galvanically separated contact bridges |
| Bounce duration, maximum | 1.5 ms |
| Material of the contacts, electrical | Silver |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Switching element | NO contact, NC contact |
| Switching principle | Snap action |
| Switchover time, maximum | 10 ms |
Mechanical data - Dimensions
| Length of sensor | 40 mm |
|---|---|
| Height of sensor | 276 mm |
| Width of sensor | 40 mm |
|---|---|
| Diameter of the Rod | 6 mm |
Ambient conditions - Insulation values
| Rated insulation voltage U | 500 V |
|---|
| Rated impulse withstand voltage U | 4 kV |
|---|
Safety classification - Safety outputs
| B | 20,000,000 Operations |
|---|
General data - Features
| Number of normally closed (NC) | 1 |
|---|
| Number of normally open (NO) | 1 |
|---|
General data
| Standards | EN IEC 60947-5-1 |
|---|---|
| Enclosure material | Light-alloy diecast, paint finish |
| Material of the rod | Epoxy resin |
| Working principle | mechanical |
|---|---|
| Enclosure coating material | painted |
| Gross weight | 380 g |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Restistance to shock | 50 g / 6 ms |
| Ambient temperature | -30 ... +90 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | 13 AWG |
| Cable section, minimum | 1.5 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Actuating element | Rod lever |
|---|---|
| Contact opening | 2 x 0.5 mm |
| Actuating torque | 0.5 Nm |
| Mechanical life, minimum | 30,000,000 Operations |
|---|---|
| Actuating speed, minimum | 1 mm/min |
| Repeat accuracy of switching points | 0.02 mm |
Approvals - Standards
| Certificates | cULus | CCC |
|---|
