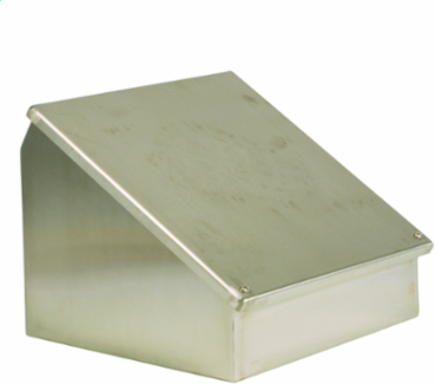

Wiegmann WC16C30SS N12 Operator Interface Consolet 16X30 304 Stainless Steel
Wiegmann WC16C30SS N12 Operator Interface Consolet 16X30 304 Stainless Steel
- MPN: WC16C30SS
- UPC: 786725849529
- PPN: HBL-WC16C30SS
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3352.31/ EA
Description
N12 Operator Interface Consolet 16X30 304 Stainless Steel
Features
- Fabricated from 304 stainless steel
- Seams are continuously welded and ground smooth
- Grounding provisions
- Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Specifications
Specifications
- Country of Origin
- Mexico
- Application
- Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees.
- Cubic Capacity
- 5280 cu.in
- Height
- 16 in
- NEMA Rating
- 12
- Standard
- cULus
- Width
- 30 in
- Knockouts
- No
- Nema Rating
- 12
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P050
- Construction
- Continuously Welded Seams
- Series
- WC-SS Series
- BOX SIZE
- 16.000x11.090x30.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725849529
Actual Depth11.09 in
Cover TypeScrew Cover
Depth11 in
MountingGrounding Provisions
Special FeaturesBodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
TypeConsole
Weight42 lb.
Mounting TypeGrounding Provisions
ARRA CompliantContact Manufacturer
Description - InvoiceCONSOLETS,OIL-TIGHT,SS,16"X30"
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack42.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
