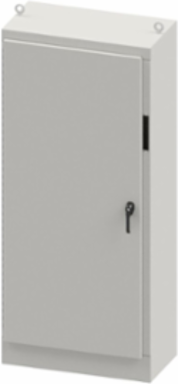

Wiegmann WA72XM3318U N12 Single Door Right Flanged Disconncet 72X33.5X18 Carbon Steel - Gray
- MPN: WA72XM3318U
- UPC: 786725415823
- PPN: HBL-WA72XM3318U
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Single Door Right Flanged Disconncet 72X33.5X18 Carbon Steel - Gray
Features
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class 9422 variable depth and cable mechanisms.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Actual Height | 72.130 in |
| Number of Doors (Fixed) | 1 |
| Color | Ansi-61 Gray Textured |
| Depth | 18 in |
| Height | 72 in |
| NEMA Rating | 12 |
| Type | Enclosure |
| Weight | 430 lb. |
| Mounting Type | Freestanding |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | DISC,UN,HD,1D,FS,72X33.50X18 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 72.130x18.130x33.500 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725415823 |
| Pallet Weight | 0.000 lb. |
| Actual Depth | 18.13 in |
|---|---|
| Actual Width | 33.5 in |
| Application | The Wiegmann universal cutout is used in large freestand and floorstand enclosures. Operator Adapter Kits are required in order to install the various manufacturers' hardware. |
| Cubic Capacity | 44064 cu.in |
| Finish | Polyester Powder |
| Mounting | Freestanding |
| Standard | cULus |
| Width | 34 in |
| Finish Type | Polyester Powder |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P035 |
| Latches Type | 3-Point Padlocking Handle |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 430.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
