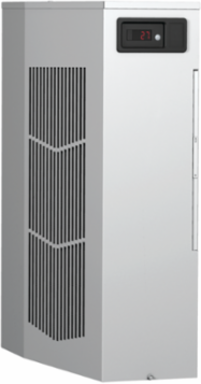

nVent Hoffman N280446G800 SpectraCool Air Conditioner, 4000 BTU, 460V, Mild Steel, 711mm Height, NEMA Type 4X
- MPN: N280446G800
- UPC: 783510357467
- PPN: HOF-N280446G800
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SpectraCool Narrow Advanced Corrosion Protection ACs utilize corrosion protection advanced coatings. This SpectraCool Narrow Advanced Corrosion Protection Lvl 2, N280446G800 item is rated 4000BTU 460V with material of Steel color Lt Gray.
Features
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Advanced Corrosion Protection Level 1 (ACP L1) Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes: Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Btu/h | 4,000 |
| Number of Phases | 1 |
| Material | Mild Steel |
| Remote Access Control | No |
| Protection Rating | NEMA Type 4X |
| Height (H) | 711 |
| Depth (D) | 356 |
| Color | Light Gray |
| Product Family | SpectraCool |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Nominal Capacity Watts | 1,172 |
|---|---|
| Nominal Voltage | 460 |
| Refrigerant | R513A |
| Operating Temperature | -40 |
| Corrosion Resistant | Yes |
| Outdoor Installation | Yes |
| Width (W) | 292 |
| Finish | Powder Coated |
| Thickness (T) | 1.21 |
| Color Code | RAL 7035 |
| Weight | 97 |
