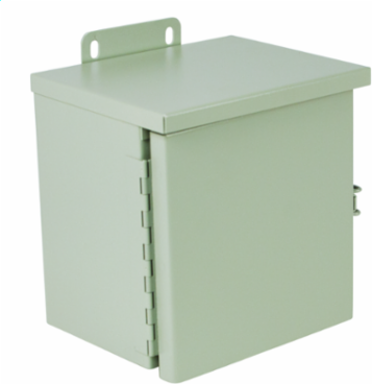

Wiegmann RHC483612 N3R Continuous Hinge Wall-Mount 48X36X12 Carbon Steel - Gray
Wiegmann RHC483612 N3R Continuous Hinge Wall-Mount 48X36X12 Carbon Steel - Gray
- MPN: RHC483612
- UPC: 786725407118
- PPN: HBL-RHC483612
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2452.08/ EA
Description
N3R Continuous Hinge Wall-Mount 48X36X12 Carbon Steel - Gray
Features
- Bodies and doors are fabricated from 14 gauge carbon steel
- Continuous hinge with a stainless steel pin
- No knockouts
- Collar studs for mounting optional back panels are provided
- External mounting plates on the top and bottom of the enclosure
- Foldaway hasp and staple are provided for padlocking
- 1/4-turn semi-flush latches are supplied to hold door securely closed
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 36.000 in
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 20736 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus
- Width
- 36 in
- Finish Type
- Textured
- Mounting Type
- External Mounting Plates
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RHC,LARGE,NEMA3R,CS,48X36X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 48.000x12.000x36.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725407118
- Pallet Weight
- 0.000 lb.
Country of OriginUS
ApplicationDesigned for use as wiring boxes and junction boxes. Provides protection in outdoor installations against rain, sleet, and snow, or indoors against dripping water.
Cover TypeHinged Cover
Depth12 in
Height48 in
NEMA Rating3R
TypeEnclosure
Weight153 lb.
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P005
ConstructionSeam and Tack Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack153.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
