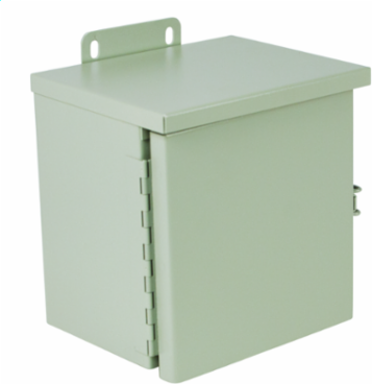

Wiegmann RHC060604 N3R Continuous Hinge Wall-Mount 6X6X4 Carbon Steel - Gray
Wiegmann RHC060604 N3R Continuous Hinge Wall-Mount 6X6X4 Carbon Steel - Gray
- MPN: RHC060604
- UPC: 786725404155
- PPN: HBL-RHC060604
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$143.92/ EA
Description
N3R Continuous Hinge Wall-Mount 6X6X4 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 16 gauge carbon steel
- Continuous hinge
- Lids supplied with a padlockable draw latch
- Hinge is made of carbon steel with a stainless steel hinge pin
- Standard size enclosures are provided with knockouts in bottom
- Weldnuts provided for mounting optional back panels
- External mounting plates, top and bottom of enclosure
- Knockouts on bottom of enclosure
Specifications
Specifications
- Actual Depth
- 4.13 in
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 7.900 in
- Cable Entry
- Knock Outs
- Cover Type
- Hinged Cover
- Depth
- 4 in
- Height
- 6 in
- NEMA Rating
- 3R
- Type
- Enclosure
- Weight
- 4.4 lb.
- Knockouts
- Yes
- Nema Rating
- 3R
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P019
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Height6.060 in
Country of OriginUS
ApplicationDesigned for use as wiring boxes and junction boxes. Provides protection in outdoor installations against rain, sleet, and snow, or indoors against dripping water.
ColorAnsi-61 Gray Textured
Cubic Capacity144 cu.in
FinishTextured
MountingExternal Mounting Plates
StandardcULus
Width6 in
Finish TypeTextured
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceRHC,SM,N3R,CS,6X6X4
Harmonization Code7326908688
Lead Time7 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE5.450x9.650x7.900 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725404155
Pallet Height48.100 in
Pallet Weight890.760 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
