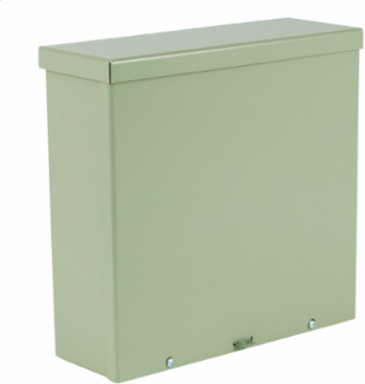

Wiegmann RSC080806NK N3R Screw-Cover Wall-Mount No Knockouts 8X8X6 Carbon Steel - Gray
Wiegmann RSC080806NK N3R Screw-Cover Wall-Mount No Knockouts 8X8X6 Carbon Steel - Gray
- MPN: RSC080806NK
- UPC: 786725865253
- PPN: HBL-RSC080806NK
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$116.86/ EA
Description
N3R Screw-Cover Wall-Mount No Knockouts 8X8X6 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 16 gauge carbon steel
- Drop shiled top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along botoom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 9.000 in
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 384 cu.in
- Finish
- Textured
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 8 in
- Finish Type
- Textured
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RSC,RAINPROOF,N3R,CS,8X8X6,NK'S
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 7.000x9.000x9.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725865253
- Pallet Height
- 40.000 in
- Pallet Weight
- 790.000 lb.
Country of OriginMX
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
Cover TypeScrew Cover
Depth6 in
Height8 in
NEMA Rating3R
TypeEnclosure
Weight8 lb.
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P017
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units3 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
