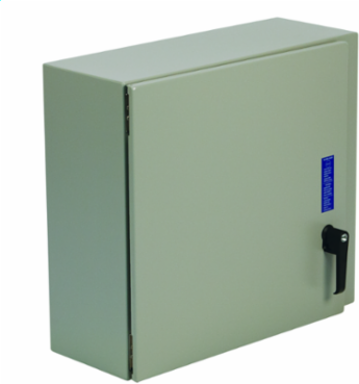

Wiegmann N412423812CD N412 Single Door Flanged Disconnect Ultimate 42X38X12 Carbon Steel - Gray
- MPN: N412423812CD
- UPC: 786725862757
- PPN: HBL-N412423812CD
- UNSPSC: 39121324
CAD
$3007.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N412 Single Door Flanged Disconnect Ultimate 42X38X12 Carbon Steel - Gray
Features
- 42X38X12 Carbon Steel - Gray
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 12 in
- Height
- 42 in
- NEMA Rating
- 1,3R, 12, 13, 4
- Sub Brand
- Ultimate Series
- Width
- 38 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Knockouts
- No
- Nema Rating
- 1,3R, 12, 13, 4
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,DISCONNECT 42X38X12W/HNDL-ULTIMATE
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3-Point
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725862757
- Pallet Weight
- 0.000 lb.
Industry Standard(s)cULus;IEC 60529
ApplicationThese general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware.
ColorANSI-61 Gray, Textured
Cubic Capacity19152 cu.in
FinishPolyester Powder
MountingMounting Holes
StandardcULus;IEC 60529
TypeEnclosure
Weight146 lb.
Finish TypePolyester Powder
Mounting TypeMounting Holes
Number of Holes4
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P038
UL ListedYes
MaterialCarbon Steel
BOX SIZE42.000x12.000x38.000 (in)
Carton - Total Units1 EA
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
