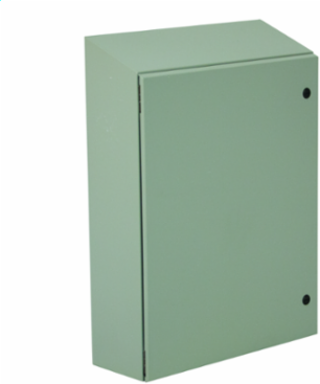

Wiegmann N412242008CST N412 Single Door Slope-Top Ultimate 24X20X8 Carbon Steel - Gray
Wiegmann N412242008CST N412 Single Door Slope-Top Ultimate 24X20X8 Carbon Steel - Gray
- MPN: N412242008CST
- UPC: 786725864362
- PPN: HBL-N412242008CST
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1084.32/ EA
Description
N412 Single Door Slope-Top Ultimate 24X20X8 Carbon Steel - Gray
Features
- 24X20X8 Carbon Steel - Gray
Specifications
Specifications
- Actual Depth
- 9.8 in
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 21.000 in
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 8 in
- Height
- 24 in
- NEMA Rating
- 1,3R, 12, 13, 4
- Sub Brand
- Ultimate Series
- Width
- 20 in
- Finish Type
- Smooth
- Mounting Type
- Mounting Holes
- Number of Holes
- 4
- Class Code
- P02
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P038
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 10.000x33.000x21.000 (in)
- Pallet Height
- 44.500 in
- Pallet Weight
- 349.000 lb.
Actual Width20.1 in
Country of OriginUS
Industry Standard(s)cULus;IEC 60529
ApplicationHubbell Wiegmann N412CST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamline
ColorANSI-61 Gray, Textured
Cubic Capacity3840 cu.in
FinishSmooth
MountingMounting Holes
StandardcULus;IEC 60529
TypeEnclosure
Weight34.5 lb.
KnockoutsNo
Nema Rating1,3R, 12, 13, 4
ARRA CompliantContact Manufacturer
Description - InvoiceN412,SD,ULTIMATE, SLOPE TOP,24X20X8
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type1/4 Turn
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725864362
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- CSA Approved
- NO
- ETL
- NO
- EU RoHS Indicator
- Yes
cULusYES
Certified ListedcULus;IEC
ListingsUL, CSA
