Documentation & Downloads

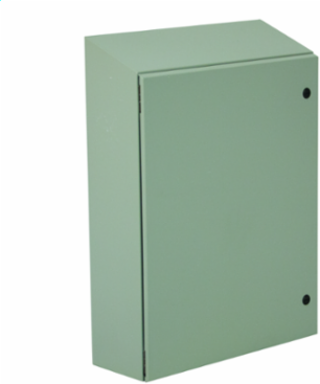

Wiegmann N412242408CST N412 Single Door Slope-Top Ultimate 24X24X8 Carbon Steel - Gray
- MPN: N412242408CST
- UPC: 786725864393
- PPN: HBL-N412242408CST
- UNSPSC: 39121324
CAD
$1244.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N412 Single Door Slope-Top Ultimate 24X24X8 Carbon Steel - Gray
Features
- 24X24X8 Carbon Steel - Gray
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 24.06 in
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 8 in
- Height
- 24 in
- NEMA Rating
- 1,3R, 12, 13, 4
- Sub Brand
- Ultimate Series
- Width
- 24 in
- Finish Type
- Smooth
- Mounting Type
- Mounting Holes
- Number of Holes
- 4
- Class Code
- P02
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P038
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 10.000x33.000x25.000 (in)
- Pallet Height
- 44.500 in
- Pallet Weight
- 225.000 lb.
- NAICS Code
- 3359326101
Actual Depth9.75 in
Industry Standard(s)cULus;IEC 60529
ApplicationHubbell Wiegmann N412CST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamline
ColorANSI-61 Gray, Textured
Cubic Capacity4608 cu.in
FinishSmooth
MountingMounting Holes
StandardcULus;IEC 60529
TypeEnclosure
Weight45 lb.
KnockoutsNo
Nema Rating1,3R, 12, 13, 4
ARRA CompliantContact Manufacturer
Description - InvoiceN412,SD,ULTIMATE,SLOPE TOP,24X24X8
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type1/4 Turn
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725864393
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
