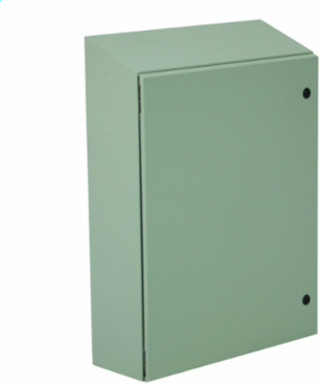

Wiegmann N412483616CST N412 Single Door Slope-Top Ultimate 48X36X16 Carbon Steel - Gray
Wiegmann N412483616CST N412 Single Door Slope-Top Ultimate 48X36X16 Carbon Steel - Gray
- MPN: N412483616CST
- UPC: 786725864522
- PPN: HBL-N412483616CST
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2597.92/ EA
Description
N412 Single Door Slope-Top Ultimate 48X36X16 Carbon Steel - Gray
Features
- 48X36X16 Carbon Steel - Gray
Specifications
Specifications
- Actual Width
- 38.5 in
- Country of Origin
- US
- Industry Standard(s)
- cULus;IEC 60529
- Application
- Hubbell Wiegmann N412CST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamline
- Color
- ANSI-61 Gray, Textured
- Cubic Capacity
- 27648 cu.in
- Finish
- Textured
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 150 lb.
- Knockouts
- No
- Nema Rating
- 1,3R, 12, 13, 4
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,SD,ULTIMATE,SLOPE TOP,48X36X16
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 1/4 Turn
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725864522
- Pallet Length
- 57.000 in
- Pallet Width
- 40.000 in
Buy American CompliantContact Manufacturer
Each - Width37.000 in
Number of Doors (Fixed)1
Cable EntryNO
Cover TypeDoor
Depth16 in
Height48 in
NEMA Rating1,3R, 12, 13, 4
Sub BrandUltimate Series
Width36 in
Finish TypeTextured
Mounting TypeMounting Holes
Number of Holes4
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P038
UL ListedYes
MaterialCarbon Steel
BOX SIZE17.000x57.000x37.000 (in)
Pallet Height38.500 in
Pallet Weight345.000 lb.
Certifications
- CSA Approved
- NO
- ETL
- NO
- EU RoHS Indicator
- Yes
cULusYES
Certified ListedcULus;IEC
ListingsUL, CSA
