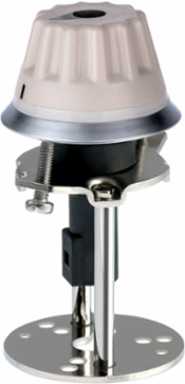

Schmersal 101169824 NDAN6WS Rotary Drive for Potentiometer, 30-40 mm Shaft Length, IP67 Protection
- MPN: 101169824
- PPN: SCM-101169824
CAD
$189.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NDAN6WS Rotary Drive for Potentiometer, 30-40 mm Shaft Length, IP67 Protection
Features
- Rotary drive for Potentiometer
Documentation & Downloads
Specifications
Key Specifications
| Height | 26 mm |
|---|
Note
| Note (General) | For mounting the potentiometer, a central-hole fastening and two different fastenings with three holes are provided. |
|---|
Mechanical data - Dimensions
| Height | 26 mm |
|---|---|
| Diameter of the rotary button | 26 mm |
| Mounting diameter | 22.3 mm |
| Diameter of shaft, maximum | 6 mm |
| Thickness of the front panel, maximum | 6 mm |
| Mounting depth | 50 mm |
|---|---|
| Diameter of the front ring | 44.5 mm |
| Shaft length | 30 … 40 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Spacing | 50 x 60 mm |
Scope of delivery
| Scope of delivery | The potentiometers are not included in delivery and must be ordered from the manufacturers concerned. |
|---|
General data - Features
| Mounting flange | Yes |
|---|
| Fully insulated | Yes |
|---|
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Design | Without limit stop |
| Sealing type | Membrane | Lip gaskets |
| Material of the potentiometer socket | Brass, nickel-plated / stainless steel |
| Colour of the operating element | White |
| Colour of the rotary button | White |
| Versions | Drehantrieb für Potentiometer |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Material of the front ring | ABS chrome-plated |
| Material of the rotary button | ABS |
| Colour of the front ring | Silver |
| Gross weight | 50 g |
Ambient conditions
| Degree of protection | IP67 | IP69K |
|---|---|
| Resistance to vibrations | 10 - 150 Hz (0.5 mm / 5 g) |
| Ambient temperature | +0 ... +80 °C |
|---|---|
| Restistance to shock | 50 g |
Mechanical data
| Mounting | mounting flange |
|---|
| Tightening torque of the screw | 0.6 Nm |
|---|
Approvals - Standards
| Certificates | BG | cULus | IPA |
|---|
