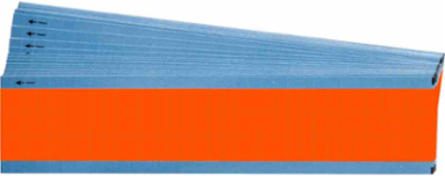

Brady TMM-COL-OR-PK NEMA Color Wire Markers, 0.5" H, Pack of 25 Cards, Orange
- MPN: TMM-COL-OR-PK
- UPC: 662820905264
- PPN: BRD-TMM-COL-OR-PK
- UNSPSC: 39131507
CAD
$145.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-702 Low-Profile Glossy Vinyl-Coated Polyester miniature wire markers from Brady® have high adhesion properties, making them ideal for wire marking and machine tool labeling.
Features
- Card-mounted wire markers allow for quick, on-the-spot wire marking
- Glossy white vinyl topcoat with a high tack rubber-based adhesive features excellent flexibility for wrapping on thin gauge wire
- High adhesion and low profile when wrapped on wires
- Withstands mild chemicals, oil and water
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Cards or Sheets per Pack
- 25
- Compatible Surface Types
- Low Surface Energy
- Finish
- Gloss
- Primary Noun, Basic Function
- Wire Marker
- Quantity per Card or Sheet
- 108
- Brady Material Number
- B-702
- Material
- Vinyl
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Oil-Resistant; UV-Resistant; Weather-Resistant
- Dimensions
- 0.5 in H
- Dimensions 2
- 0.5 in H
- Height (mm/cm/m)
- 12.7 mm
- Maximum Service Temperature °F
- 212 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Thickness (mm/cm/m)
- 0.056 mm
Brand NameBrady®
ColorOrange
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155
Label/Media FormatDie-Cut on Cards
Printer and Label ApplicationsWire & Cable
Adhesive TypeHigh-tack Rubber Based
Label PropertiesPermanent Adhesive Labels
Material PropertiesLow Profile
SAP B-NumberB-702
Dimensions (Metric)12.7 mm H
Height (in/ft/yd)0.5 in
Maximum Service Temperature °C100 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Thickness (in/ft/yd)0.0022 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
