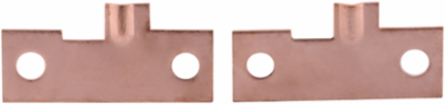

Square D 9998SO31 NEMA Motor Starter Jumper Strap Kit with Melting Alloy Overload Relay, 600 V AC

NEMA Motor Starter Jumper Strap Kit with Melting Alloy Overload Relay, 600 V AC
  • MPN: 9998SO31
  • UPC: 785901862611
  • PPN: SCH-9998SO31

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$35.65/ EA

Description

Jumper strap kits are used on three phase manual and magnetic starters with melting alloy overload relays. It is used where a three phase starter is used to control a single phase motor. This kit contains two jumper straps and a wiring diagram showing how to wire a three phase starter to control a single phase motor. It also includes a single phase thermal unit selection table. Can be used with 8536SA, 8536SB, 8536SC, 8536SD starters and 2510M and 2510T manual starters.

Specifications

Specifications

Thermal Overload Type
melting alloy
Range Of Product
Accessory
Product Destinationoverload relay

Complementary

Height
47.6 mm
Depth
3 mm
Width23.4 mm
[Ue] Rated Operational Voltage600 V AC

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveUnder investigation
