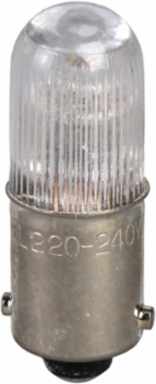

Schneider Electric DL1CS3220 Harmony XB4 Green Neon Bulb 11mm Diameter 220-240V AC
- MPN: DL1CS3220
- PPN: SCH-DL1CS3220
CAD
$17.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Harmony XB4 Green Neon Bulb is expertly designed for visibility and reliability, making it an essential component for various industrial applications. With an 11mm diameter, this bulb operates efficiently within a voltage range of 220-240V AC, ensuring that it provides consistent illumination in demanding environments. Its vibrant green glow not only enhances operational safety by clearly signaling status, but also seamlessly integrates with your existing panel systems, demonstrating a commitment to both functionality and quality in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Signalling Color
- green
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Supply Voltage
- 220...240 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0033319688
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.0150520468
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 3
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Diameter
- 11 mm
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Sale Per Indivisible Quantity
- 10
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1808008_V2-EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Us] Rated Supply Voltage
- 220...240 V220...240 V AC
- Accessory / Separate Part Destination
- illuminated push-button
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.000319922, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0002940351, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]5 kg CO2 eq., 4.7777975191
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bulb BaseBA 9s
Power Dissipation In W0.3 W
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint5 kg CO2 eq.
Signalling Colorgreen
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh10.074
Length Total28 mm
Accessory / Separate Part Categorylighting accessory
Accessory / Separate Part Typeneon bulb
Package Weight(Lbs)2.0 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 4.7967954918
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP1808008_V2-EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1808008_V2-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
ETIM
- ETIM 8
- EC000399
ETIM 9EC000399
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
