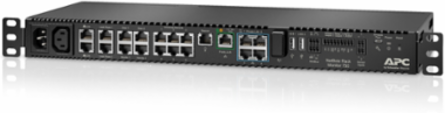

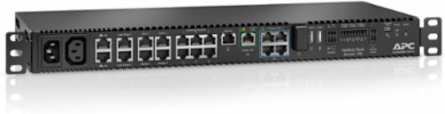

APC NBRK0750 Rack Mount Security and Environmental Appliance, 1U, 5.40 lb, 7.01 Inch Depth
- MPN: NBRK0750
- UPC: 731304344407
- PPN: APC-NBRK0750
CAD
$4343.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Rack Mount Security and Environmental Appliance, 1U, 5.40 lb, 7.01 Inch Depth
Features
- Gigabit Ethernet, 10/100 BaseT — Gigabit Ethernet, 10/100 BaseT
- Expansive Security and Monitoring — Supports up to 78 wired sensors, 47 wireless sensors, access control for 26 rack doors, and 4 camera streams downstream of a single IP address
- Supports the new HD, Low Light Camera Pod 165 (NBPD0165) — Supports the new HD, Low Light Camera Pod 165 (NBPD0165)
- 4-Port POE Switch — Built-in true private network switch for use with NetBotz Camera Pod 165 (NBPD0165)
- Appliance includes integrated access control and door contact sensor ports for use with the stand-alone 125 kHz handle kit (NBHN125) and contact kit (NBES0303) — Appliance includes integrated access control and door contact sensor ports for use with the stand-alone 125 kHz handle kit (NBHN125) and contact kit (NBES0303)
- Sensor Pod Support — Supports up to 12 Sensor Pod 150's (NBPD0150) connected via daisy-chain
- Supports up to 12 Rack Access Pod 170's (NBPD0171) connected via daisy-chain — Supports up to 12 Rack Access Pod 170's (NBPD0171) connected via daisy-chain
- Dual Rope Leak Inputs — Dual rope leak sensor ports allow additional leak detection in two different directions
Documentation & Downloads
Specifications
Additional
- Weight
- 5.40 lb (2.45 kg)
- Height
- 1.69 in (4.3 cm)
- Rack Height
- 1U
- Mercury Free
- Yes
- RoHS Compliance
- Compliant with Exemptions
- Approvals
- 2014/30/EU, AS/NZS 3548 Class A, CE, EMC Directive 2004/108/EC, VCCI Class A
- Communication Network Type
- RJ-45 10/100/1000Base-T
- Number of Sensor Pods Supported
- 12
- Number of Cameras Supported
- 4
- Display Resolution
- Up to 1280x1024
- Operating Altitude
- 0 to 10,000 ft
- Ambient Air Temperature for Storage
- 5 to 149 °F (-15 to 65 °C)
- Storage Relative Humidity
- 0 to 95%
Depth7.01 in (17.8 cm)
Width17.01 in (43.2 cm)
Mounting PositionFront, Rear, Horizontal
WEEE ComplianceEU Waste Directive Compliant
REACH ComplianceContains SVHC above threshold
Communication ProtocolsA-Link, DHCP, HTTPS, IPv4, SNMP v1, SNMP v3, SSH v2, TCP/IP
Number of Universal Sensor Ports6
Number of Universal Sensors Supported78
Camera Frame RateUp to 30 fps
Ambient Air Temperature for Operation32 to 104 °F (0 to 40 °C)
Relative Humidity0 to 95%
Storage Altitude0 to 50,000 ft (0 to 15,240 m)
