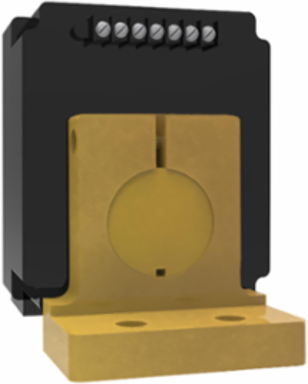

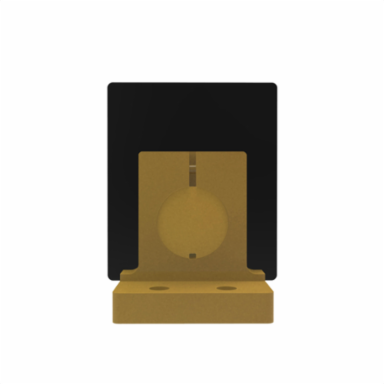

Square D S48896 Neutral current transformer, PowerPacT R, 2000A sensor, MasterPacT with oversized neutral protection, 1200 to 1250A
- MPN: S48896
- UPC: 785901926160
- PPN: SCH-S48896
- UNSPSC: 39121616
CAD
$1696.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D PowerPacT P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. This external neutral current transformer kit is used for MasterPact T-frame 3 phase, 4wire circuit breakers with current rating 1200 to 1600A with oversized neutral protection as 1.6Ir. External neutral current transformer could be used with PowerPacT P circuit breakers with current rating of 2000A.
Features
- Neutral current transformer for use with PowerPact R, MasterPact Cirvuit breakers
- Current transfomer sensor is rated as 2000 A for PowerPact R and 1200 to 1250A for MasterPacT
- Current transformers are used for applications requiring ground-fault protection or for neutral protection and metering
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 1200-1250 A, 2000-2000 A |
|---|
Important Information Attributes
| Range Of Product | PowerPact R, MasterPact NT |
|---|---|
| Local Publishable Date | 2026-04-30 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | sensor |
| Sustainable Packaging | No |
| Customs Code | 8504312000 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1906 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Mounting Location | external |
| Product Destination | current transformer |
| Returnability | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Range Of Product | PowerPact R, MasterPact NT |
|---|
| Product Or Component Type | sensor |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
