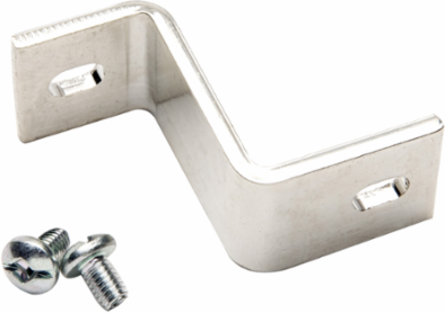

Square D NFCRBOND8 Bonding Neutral Strap Kit for NF Panelboard, 800A, 200 kA Rating
- MPN: NFCRBOND8
- PPN: SCH-NFCRBOND8
CAD
$311.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This bonding neutral strap kit from Schneider Electric is specifically designed for use with NF panelboard interiors, providing essential support for electrical installations rated up to 800A. Crafted with a focus on safety and compliance, this mounting kit includes a bonding strap, screws, and an instruction sheet to facilitate straightforward installation. With a short-circuit withstand rating of 200 kA, it ensures reliable performance in demanding environments. Additionally, this product is compliant with EU RoHS directives and comes with a warning regarding potential exposure to certain chemicals, underscoring the importance of safety in electrical applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Line Rated Current
- 800-800 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Provided Equipment
- bonding strap 1screw 2, instruction sheet 1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 11 kg CO2 eq., 11.0184205139
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 30 kg CO2 eq., 29.5222615022
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- mounting kit
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 4 544 kg CO2 eq.
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; MX
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 94
- Short-circuit Withstand
- 200 kA
- Package Weight(Lbs)
- 4.536 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase [A4]1.307506076, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.360642328, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 502 kg CO2 eq., 4501.8730310263
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Market SegmentationCommercial
Energy Efficiency OptimizedFalse
Product DestinationNF panelboard interior
ReturnabilityNo
Sustainable PackagingNo
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67,UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh10091.52
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Accessory / Separate Part Categoryreplacement part
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4544.0818614464
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Provided Equipment
- bonding strap 1screw 2, instruction sheet 1
Product Or Component Typemounting kit
