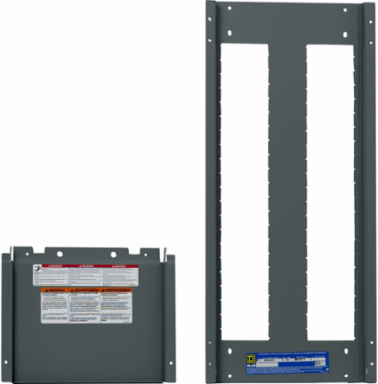

Square D NFRPL466L6TFL Panelboard Accessory, 600A, 3 Phase, 66 Circuits
- MPN: NFRPL466L6TFL
- PPN: SCH-NFRPL466L6TFL
CAD
$712.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enhance your power distribution management with this panelboard accessory from Schneider Electric. Designed for efficient energy handling, it accommodates up to 66 circuits and supports a robust 600A current capacity across three phases. This accessory is an essential component for optimizing the functionality of load centers and panel boards, ensuring reliable and organized electrical distribution. With its industry-leading quality and reliable performance, it plays a critical role in maintaining safe and effective power management in a variety of applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Complementary Attributes
- Line Rated Current
- 600-600 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Tightening Torque
- 45-50 lbf.in 13.30- 67.43 mm² (6 AWG...2/0 AWG), 100-100 lbf.in 13.30- 67.43 mm² (6 AWG...2/0 AWG)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 8 kg CO2 eq., 7.7124085387
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 21 kg CO2 eq., 20.6642813646
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Number Of Spaces
- 66
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Sustainable Packaging
- No
- Total Number Of Wires
- 4
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; MX
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 94
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908160
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase [A4]0.915196603, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2524337283, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 502 kg CO2 eq., 4501.8730310263
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Market SegmentationCommercial
Energy Efficiency OptimizedFalse
Phase3 phase
Product Or Component Typecover plate
Software Versionv5.9.4
Total Lifecycle Carbon Footprint4 531 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67,UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh10091.52
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Accessory / Separate Part Categoryreplacement part
Package Weight(Lbs)3.175 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4531.4173512608
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
Product Or Component Typecover plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
