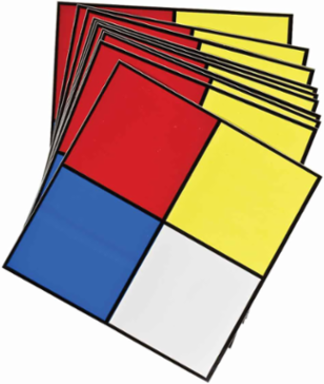

Brady 58501 NFPA Diamond Labels, 5" H x 5" W x 0.004" D
Brady 58501 NFPA Diamond Labels, 5" H x 5" W x 0.004" D
- MPN: 58501
- UPC: 754473585013
- PPN: BRD-58501
- UNSPSC: 55121725
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$86.30/ EA
Description
Pressure Sensitive Vinyl (B-946) is an indoor/outdoor marking film ideal for pipe marking, arrow tape, vehicle placards, pedestal markers, warning panels and safety signs.
Features
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
- Average outdoor durability 8-10 years
- Service temperature of -40°F to 180°F (-40°C to 82°C)
- Recommended Quik-Align size for numbers and letters is 2"
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black/Blue/Red/Yellow on White
- Enables Industry Compliance
- Globally Harmonized System (GHS); NFPA 704; OSHA 1910.1200
- Image or Text
- Image Only
- Number of Printed Sides
- 1
- Printer and Label Applications
- General Identification; Pipe Marker
- Reflective Type
- Non-Reflective
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Material
- Vinyl
- SAP B-Number
- B-946
- Dimensions (Metric)
- 127 mm H
- Height (in/ft/yd)
- 5 in
- Maximum Service Temperature °C
- 82 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 5 in H x 5 in W
- Thickness (in/ft/yd)
- 0.004 in
- Width (in/ft/yd)
- 5 in
Calculated Sign ShapeDiamond
Compatible Surface TypesGeneral
FinishGloss
Mounting TypeSelf-Adhesive
Primary Noun, Basic FunctionSign
PSPA Photoluminescence ClassNot Illuminated
ShapeDiamond
Brady Material NumberB-946
Indoor or Outdoor UseOutdoor Use
LaminatedNot Laminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Dimensions5 in H x 5 in W
Dimensions 25 in H x 5 in W
Height (mm/cm/m)127 mm
Maximum Service Temperature °F180 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Sign Size-General5 in x 5 in
Thickness (mm/cm/m)0.102 mm
Width (mm/cm/m)127 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Unavailable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
