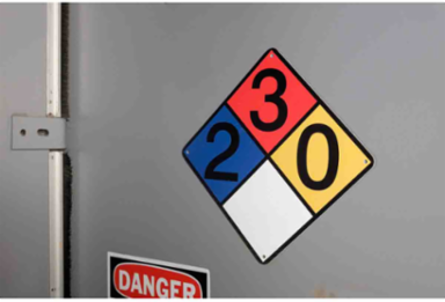

Brady 50053 NFPA Placard System Kit, 10" H x 10" W x 0.004" D
- MPN: 50053
- UPC: 754473500535
- PPN: BRD-50053
- UNSPSC: 55121725
CAD
$509.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensitive Vinyl (B-946) is an indoor/outdoor marking film ideal for pipe marking, arrow tape, vehicle placards, pedestal markers, warning panels and safety signs.
Features
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
- Average outdoor durability 8-10 years
- Service temperature of -40°F to 180°F (-40°C to 82°C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Black/Blue/Red/Yellow on White
- Enables Industry Compliance
- Globally Harmonized System (GHS); NFPA 704; OSHA 1910.1200
- Image or Text
- Image & Text
- Language
- English
- Number of Printed Sides
- 1
- Printer and Label Applications
- General Identification; Pipe Marker
- Reflective Type
- Non-Reflective
- Text Legend
- HEALTH HAZARD SPECIFIC HAZARD FIRE HAZARD INSTABILITY
- Brady Material Number
- B-946
- Indoor or Outdoor Use
- Outdoor Use
- Laminated
- Not Laminated
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Dimensions
- 10 in H x 10 in W
- Dimensions 2
- 10 in H x 10 in W
- Height (mm/cm/m)
- 25.4 cm
- Maximum Service Temperature °F
- 180 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 10 in x 10 in
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 25.4 cm
Calculated Sign ShapeDiamond
Compatible Surface TypesGeneral
FinishGloss

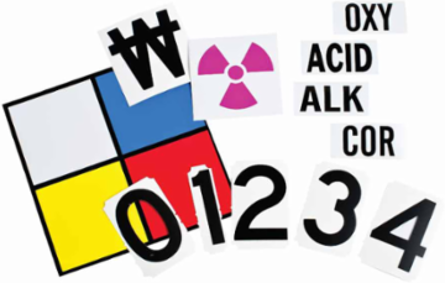

Includes10 Blank NFPA Placards, 10 Characters Each of 0-4, No Water Symbol, Radiation Symbol, OXY, ACID, COR and ALK
Mounting TypeSelf-Adhesive
Primary Noun, Basic FunctionSign Kit
PSPA Photoluminescence ClassNot Illuminated
ShapeDiamond
Adhesive TypePermanent Acrylic
IlluminationNot Illuminated
Label PropertiesAggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
MaterialVinyl
SAP B-NumberB-946
Dimensions (Metric)25.4 cm H
Height (in/ft/yd)10 in
Maximum Service Temperature °C82 °C
Minimum Application Temperature °C-18 °C
Minimum Service Temperature °C-40 °C
Sign Size10 in H x 10 in W
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)10 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
