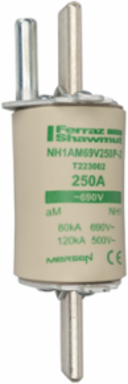

Mersen T223002 NH Fuse-Link aM 690VAC, Size 1, 250A, Lead Free, Clip Mount
- MPN: T223002
- PPN: FER-T223002
CAD
$213.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

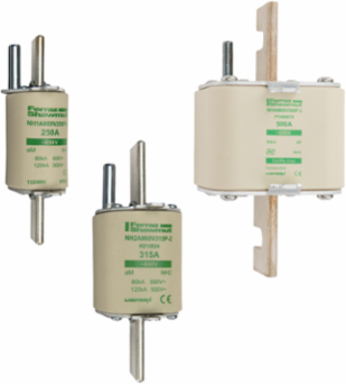

The NH system is classified among plug-in fuse systems and is composed of: * fuse-base (possibly including terminal covers and phase barriers) * fuse-link with blade contact * fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current, it must be handled by a qualified professional.
Specifications
Key Specifications
| Rated voltage AC IEC | 690 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | aM |
| Mounting | Clip |
| Design Details | live tags |
| Indication System Type | Striker |
| Connection/Terminal Type | Plain Blades |
| Power Dissipation at Rated Current Value | 21.5 W |
| Length | 5.31 in |
| Weight | 0.845 lb |
| Ampere Rating | 250 A |
|---|---|
| AC or DC | AC |
| Fuse Size | NH1 |
| AC Max I.R./Breaking Capacity: I1 | 80 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Width | 1.76 in |
| Height | 2.52 in |
