Adaptaflex

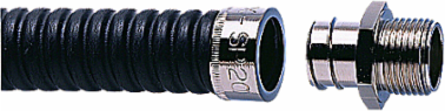

Adaptaflex SP25/M25/A Conduit Fitting with Metric Threads

  • MPN: SP25/M25/A
  • UPC: 786210249100
  • PPN: T-B-SP25/M25/A

CAD

$26.77

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Nickel Plated Brass Straight Fitting with Fixed External Thread, Metric Thread Size M25

Specifications

North American Specifications (UNSPSC)

UNSPSC39121311 Electrical fittings
Brand NameAdaptaflex
ApplicationFor Insertion into Threaded Entries or Knockout to Connect Conduit
MaterialBrass
ColorMetallic
Cable EntryM25 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
SizeNC 25mm
FinishNickel Plated
ConnectionStraight

Packaging

Inner Quantity10
Outer Quantity250
Weight Uom0.35 lbs. per 100
Inner Dimensions (inches)1.3x1.4x1.3
Outer Dimensions (inches)6x14x14

European Specifications (ETIM)

ETIMEC001180 Screw connection for protective metallic hose
Degree of protection (IP) conduit dependantIP54-IP54
Revolving threadN
Connection type screw connection to housingThread
Thread connection sizeM25 x 1.5
Material housingBrass
Thread length12mm
Total height30mm
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit FIN
Nominal diameter25mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length36.5mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-50-+350°C
Conduit Fitting with Metric Threads
