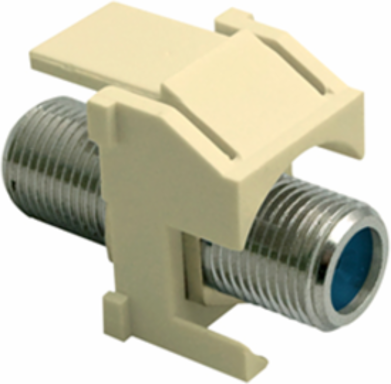

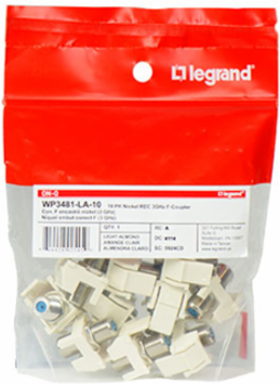

On-Q WP3481-LA Recessed Nickel Self-Terminating F-Connector, Light Almond WP3481-LA
- MPN: WP3481-LA
- UPC: 804428024767
- PPN: P-S-WP3481LA
- UNSPSC: 39121704
CAD
$2.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The non-flexing design of the On-Q AnyPort Decorator Outlet provides security when plugging and unplugging cables. Steel threaded inserts with recessed hex design to reduce spin for faceplate mounting and easy leveling to compensate for off-center boxes
Features
- Supports AnyPort Application Inserts, with most insert combinations compatible
- Outlets mount in On-Q Installation Brackets or low voltage mud rings
- Snap-in identification icons available
- Fits decorator-style faceplates
- Recessed hex nut does not allow jack rotation
- Extra long for easy connections
- Previously P&S Part # KSFFLA
- Available in contractor packs
Documentation & Downloads
Specifications
General Info
| Color | Light Almond |
|---|---|
| Type | Keystone Insert |
| Connection Type | F Connector |
|---|
Technical Information
| Frequency | 5-3000 MHz |
|---|---|
| Product Fits Into | Keystone Cutout |
| Typical Return Loss | -15dB min |
| Material | High Impact Flame Retardant Plastic |
|---|---|
| Typical Insertion Loss | 0.2 dB max |
Dimensions
| Depth (Metric) | 3 cm |
|---|---|
| Length (Metric) | 2.2 cm |
| Width (Metric) | 1.7 cm |
| Depth (US) | 1.20" |
|---|---|
| Length (US) | 0.87" |
| Width (US) | 0.67 in |
Listing Agencies/Third Party Certifications
| RoHS | Yes |
|---|---|
| UL Standard | Yes |
| UL Listing No | ANSI/UL 1863 |
|---|---|
| UN SPSC | 39121704 |
