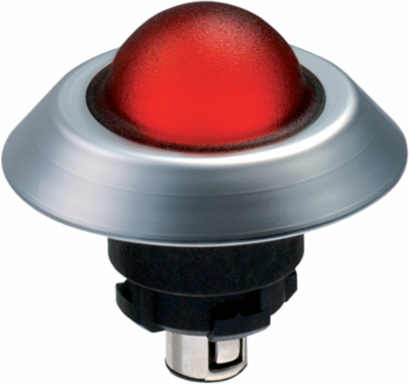

Schmersal 101163597 NMERT Illuminated Signal 44.5 mm Diameter, Red Dome, IP67/IP69K

MPN: 101163597
PPN: SCM-101163597

$148.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NMERT Illuminated Signal 44.5 mm Diameter, Red Dome, IP67/IP69K

Features

high calotte
integrated multi-LED, extra bright in device head

Documentation & Downloads

Specifications

Note

Note (General)	for other input voltages, a special light element must be used

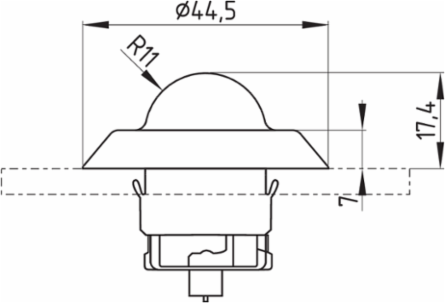

Mechanical data - Dimensions

Diameter total	44.5 mm
Diameter of the dome	22 mm
Mounting diameter	22.3 mm
Thickness of the front panel, maximum	6 mm

Height of the dome	10.4 mm
Diameter of the front ring	44.5 mm
Thickness, of the front panel, minimum	1.5 mm
Spacing	50 x 50 mm

Scope of delivery

Note (scope of delivery, number and type)	Mounting flange ELM (1014387) is included in delivery

General data - Features

Illuminable	Yes
Fully insulated	Yes

Mounting flange	Yes
Integral system diagnostics, general	Yes

General data

Standards	EN IEC 60947-5-1 \| EN IEC 60947-1
Design	Round \| High calotte
Sealing type	Membrane \| Lip gaskets \| Form seals
Material of the front ring	ABS, chrome-plated
Colour of the front ring	Silver
