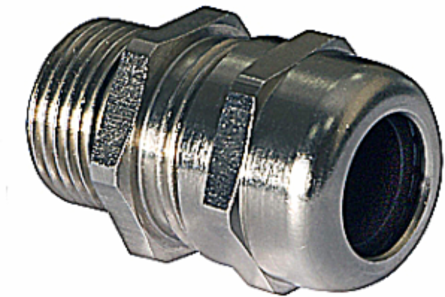

Thomas & Betts BCG-PG362 Non Armoured Cable Gland
- MPN: BCG-PG362
- UPC: 786210157290
- PPN: T-B-BCG-PG362
CAD
$49.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Non Armoured Cable Gland, Thread Size PG36, Cable Range 22 to 32 Millimeters, Thread Length 9 Millimeters, Nickel Plated Brass
Features
- Low profile compact cable glands
- Wide cable clamping range
- Good corrosion resistance
Specifications
European Specifications (ETIM)
| ETIM | EC000441 Cable screw gland |
|---|---|
| Nominal thread size metric/PG | 36 |
| Suitable for cable diameter | 22 - 32mm |
| Material quality | Brass |
| Degree of protection (IP) | IP68 |
| Model | Straight |
| Thread type | PG |
|---|---|
| Thread length | 9mm |
| Material | Metal |
| Surface protection | Nickel-plated |
| Colour | Natural colour |
| Operating temperature | -20-+100°C |
North American Specifications (UNSPSC)
| UNSPSC | 39121431 Cable gland connector |
|---|---|
| Brand Name | T&B |
| Application | General purpose, Panel building, Light fixture and housings |
| Size | PG36 |
| Material | Brass |
| Color | Metallic |
| Temperature Rating | -20 to +100 Degrees C |
| IGCC | 4601 Cable gland connector |
|---|---|
| Type | Non Armoured Cable Gland |
| Standard | cULus, RoHS, WEEE, LVD |
| Conductor Range | 22 to 32 Millimeters |
| Finish | Nickel plated |
| NEMA Rating | NEMA 4 |
Packaging
| Inner Quantity | 5 |
|---|---|
| Outer Quantity | 10 |
| Weight Uom | 0.02 lbs. Each |
| Inner Dimensions (inches) | 7.09x3.54x3.54 |
|---|---|
| Outer Dimensions (inches) | 3.94x15.75x11.02 |
