Thomas & Betts BCG-PG482-L Non Armoured Cable Gland
- MPN: BCG-PG482-L
- UPC: 786210157382
- PPN: T-B-BCG-PG482-L
CAD
$112.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

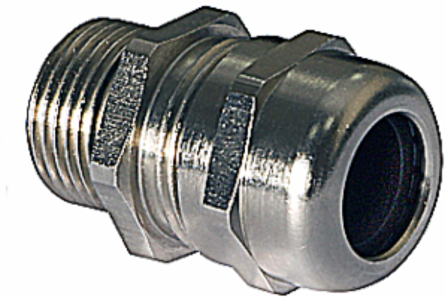

Non Armoured Cable Gland, Thread Size PG48, Cable Range 34 to 44 Millimeters, Thread Length 18 Millimeters, Nickel Plated Brass
Features
- Low profile compact cable glands
- Wide cable clamping range
- Good corrosion resistance
Specifications
European Specifications (ETIM)
| ETIM | EC000441 Cable screw gland |
|---|---|
| Nominal thread size metric/PG | 48 |
| Suitable for cable diameter | 34 - 44mm |
| Material quality | Brass |
| Degree of protection (IP) | IP68 |
| Model | Straight |
| Thread type | PG |
|---|---|
| Thread length | 18mm |
| Material | Metal |
| Surface protection | Nickel-plated |
| Colour | Natural colour |
| Operating temperature | -20-+100°C |
Packaging
| Inner Quantity | 5 |
|---|---|
| Outer Quantity | 5 |
| Weight Uom | 0.02 lbs. Each |
| Inner Dimensions (inches) | 7.09x3.54x3.54 |
|---|---|
| Outer Dimensions (inches) | 3.94x15.75x11.02 |
North American Specifications (UNSPSC)
| UNSPSC | 39121431 Cable gland connector |
|---|---|
| Brand Name | T&B |
| Application | General purpose, Panel building, Light fixture and housings |
| Size | PG48 |
| Material | Brass |
| Color | Metallic |
| Temperature Rating | -20 to +100 Degrees C |
| IGCC | 4601 Cable gland connector |
|---|---|
| Type | Non Armoured Cable Gland |
| Standard | cULus, RoHS, WEEE, LVD |
| Conductor Range | 34 to 44 Millimeters |
| Finish | Nickel plated |
| NEMA Rating | NEMA 4 |
