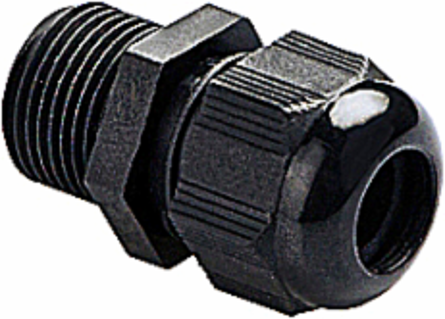

Thomas & Betts NCG-PG291G Non Armoured Cable Gland
- MPN: NCG-PG291G
- UPC: 786210153537
- PPN: T-B-NCG-PG291G
CAD
$6.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Non Armoured Cable Gland, Thread Size PG29, Cable Range 18 to 25 Millimeters, Thread Length 11 Millimeters, Nylon, Grey
Features
- Low profile compact cable glands
- Wide cable clamping range
- Good corrosion resistance
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121431 Cable gland connector |
|---|---|
| Brand Name | T&B |
| Application | General purpose, Panel building, Light fixture and housings |
| Size | PG29 |
| Material | Nylon |
| NEMA Rating | NEMA 4 |
| IGCC | 4601 Cable gland connector |
|---|---|
| Type | Non Armoured Cable Gland |
| Standard | UL514B, CSA, RoHS, WEEE, LVD |
| Conductor Range | 18 to 25 Millimeters |
| Color | Gray |
| Temperature Rating | -20 to +100 Degrees C |
European Specifications (ETIM)
| ETIM | EC000441 Cable screw gland |
|---|---|
| Nominal thread size metric/PG | 29 |
| Suitable for cable diameter | 18 - 25mm |
| Material quality | Polyamide (PA) |
| Degree of protection (IP) | IP68 |
| Model | Straight |
| Thread type | PG |
|---|---|
| Thread length | 11mm |
| Material | Plastic |
| Halogen free | Y |
| Colour | Dark grey |
| Operating temperature | -20-+100°C |
Packaging
| Inner Quantity | 10 |
|---|---|
| Outer Quantity | 20 |
| Weight Uom | 0.01 lbs. Each |
| Inner Dimensions (inches) | 7.09x3.54x3.54 |
|---|---|
| Outer Dimensions (inches) | 3.94x15.75x11.02 |
