Sta-Kon AD183 Disconnects
- MPN: AD183
- UPC: 786210814452
- PPN: T-B-AD183
CAD
$0.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

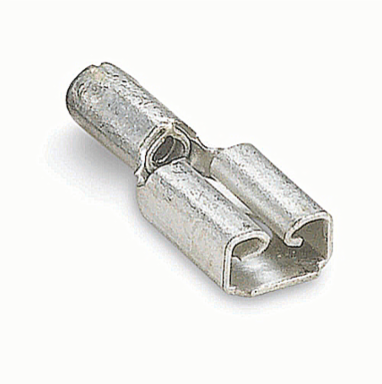

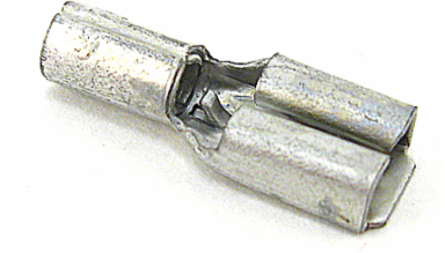

Non-Insulated Female Disconnect, Length .64 Inches, Width .23 Inches, Tab Size .187x.032, Wire Range #22-#18 AWG, Copper, Tin Plated, 1,000 Pack
Features
- Quick, reliable method of connection to terminal blocks and boards without the use of tools.
- Unique construction of the female disconnect offers long-term dependability.
- Application Tools: WT111M, WT112M, ERG4002, WT2000
- Alternate Package Qty: AD18183
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121447 Wire terminal disconnect |
|---|---|
| Brand Name | Sta-Kon |
| Special Features | Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability. |
| Wire Size | 22-18 |
| Material | Brass |
| Color | Metallic |
| IGCC | 4667 Wire terminal disconnect |
|---|---|
| Type | Disconnects |
| Standard | UL E66716 |
| Voltage Rating | 600V |
| Finish | Electro -Tin Plated |
| Insulation | Non-Insulated |
European Specifications (ETIM)
| ETIM | EC000516 Round or flat plug/receptacle |
|---|---|
| Material | Copper |
| Insulation | Not Insulated |
|---|
Packaging
| Inner Quantity | 1000 |
|---|---|
| Outer Quantity | 5000 |
| Weight Uom | 1.25 lbs. per 1000 |
| Inner Dimensions (inches) | 3.5x3x3 |
|---|---|
| Outer Dimensions (inches) | 10.25x7.37x4 |
