Hubbell Premise Wiring

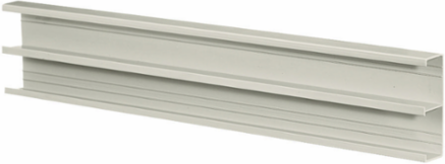

Hubbell Premise Wiring PB2B5 Non-Metallic Raceway, BaseTrak 5 Ft, 2 Channel, Thermoplastic, White

Non-Metallic Raceway, BaseTrak 5 Ft, 2 Channel, Thermoplastic, White
  • MPN: PB2B5
  • UPC: 783585310015
  • PPN: HBL-PB2B5
  • UNSPSC: 39131710

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$18.60/ EA

Description

Non-Metallic Raceway, BaseTrak Series, 2 Channel Base, 5' Length

Features

  • UL Listed and CSA Certified to 600 volts
  • Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements
  • Standard

Specifications

Specifications

Country of Origin
Puerto Rico
Industry Standard(s)
CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
Application
5' Base
Enclosure
NEMA 1 Rating
Non Hazardous Location
Non Hazardous
Standard
CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
Width
4.5 in
Style
Two Channel
Freight Class Code
06168002
Image Actual Or Representative
A
Replaced Catalog Number
MT11B5
Material
Thermoplastic
Base Unit of Measure
FT
Carton - Gross Weight per Pack
29.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
50 EA
Each - Pack Description
Feet
Package Quantity
1 EA
ColorOffice White
PerformanceEnvironmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F
Cover TypeRemovable
Length5 ft
Special FeaturesStandard
TypeBase Only
Enclosure TypeNEMA 1 Rating
Description - Invoice2 CHAN.BTRAK BASE 5'LG.
Harmonization Code3925900000
MSDS FlagNo
ConstructionExtruded Plastic
SeriesPB2
BOX SIZE2.755x84.875x11.185 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack00783585310015
Each - Number of Sub Packs1
Package - Total Units1 EA

Certifications

EU RoHS Indicator
No
