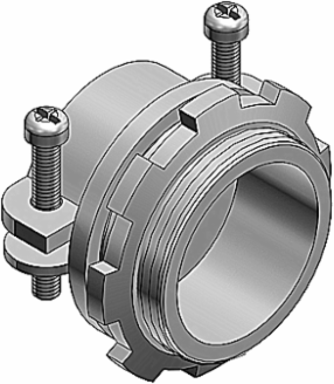

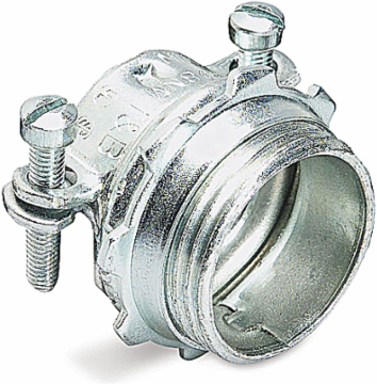

Thomas & Betts 3302-C Nonmetallic Sheathed Cable Fittings
- MPN: 3302-C
- UPC: 786210360874
- PPN: T-B-3302-C
CAD
$5.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2 Inch Non-Metallic Sheathed Cable Two Screw Connector, For NMSC 14/3, 12/3, 10/2 or 10/3, For Multiple (2) NM Cables 14/2 or 12/2, For Flexible Cord Cable Openings (.250 Inch to .650 Inch), For Multiple Flexible Cords (.250 Inch Combined Diameter Minimum) For Service Entrance Cables (.464 Inch X .235 Inch or Larger
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001178 Screw connection for protective plastic hose
- Model
- Straight
- Construction type
- External thread
- Thread connection size
- Other
Nominal size in inch1/2 inch
Revolving threadN
Type of connectionOther
North American Specifications (UNSPSC)
- UNSPSC
- 39121419 Flex connectors
- Brand Name
- T&B Industrial Fitting
- Type
- Nonmetallic Sheathed Cable Fittings
- Application
- To Connect Nonmetallic Sheathed Cable and Flexible Cord to a Box or an Enclosure.
- Size
- 1/2 Inch
- Material
- Steel - Non Insulated
- Color
- Metallic
IGCC4573 Flex connectors
Sub BrandCSA, UL E17583
Special FeaturesRounded Cable Grip and Smooth Bushing Protect The Cable Sheath and Wire Insulation. Since Saddle is Threaded, Screws Do Not Travel or Extend Beyond The Connector Body As It is Clamped to The Cable. An Extra Lip on The Saddle Closes The Unused Part of The Connector Opening.
StandardCSA, UL
ConnectionStraight
FinishZinc Plated
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 500
- Weight Uom
- 5.75 lbs. per 100
Inner Dimensions (inches)4x5x8
Outer Dimensions (inches)21.1x5.8x8.6
