Documentation & Downloads

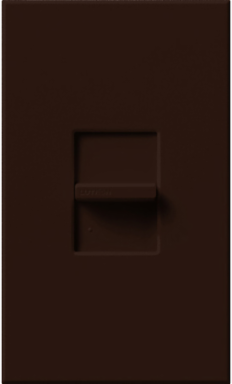

Lutron NTCL-250-BR Slide-to-Off Dimmer 250W LED/CFL, 1000W Incandescent, 120V, Brown
- MPN: NTCL-250-BR
- UPC: 784276107525
- PPN: LUT-NTCL-250-BR
- UNSPSC: 39122206
CAD
$116.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Slide-to-Off Dimmer 250W LED/CFL, 1000W Incandescent, 120V, Brown
Features
- Available for 120-277V line voltage switching (sink- only control) 0 - 10 V- LED drivers and ballasts (power pack not required for loads up to 8 A)
- Excellent for residential or commercial applications
- Intuitive operation; easy to use
- Slide-to-off and preset models available
- Enclosed heat sink for aesthetically pleasing appearance
- Multi-gang alignment for quick and easy installation
- Full family of products for most lighting sources, plus matching accessories and wallplates
- Rated at 120V, 60Hz, unless noted otherwise
- Custom products (CPN) are available to meet specific customer needs. Please contact Lutron Customer Assistance at 1.844.LUTRON1 (588.7661) for availability
- C.L dimmer controls 250 W dimmable LED/CFL (screw-base), 1000 W incandescent/halogen, or 400 W Hi-Lume 1 percent 2-wire LED driver (max 10) loads
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Matte
- Connection Type
- Wire Leads
- Environmental Conditions
- 0 to 90% humidity, non-condensing. Indoor use only.
- Frequency Rating, Maximum
- 60 Hz
- Operating Temperature, Maximum
- 104 F
- Switch Type
- Slide
- Voltage Rating
- 120
- Face Material
- Metal;Plastic
- Color
- Brown
- Enclosure
- Plastic
- Insulation
- Plastic
- Mounting
- Wallbox
- Size
- 4.56 x 2.75;116 x 70 in;mm
ApplicationLighting Control
Decorative ColorBrown
Family ColorBrown
Number of Poles1
Operating Temperature, Minimum32 F
TypeSlide-to-off dimmer, single-pole
Wattage1000 W
ActuatorSlide
ConnectionWire Leads
FinishMatte
MaterialPlastic/Metal
Operating Temperature32 to 104 F
