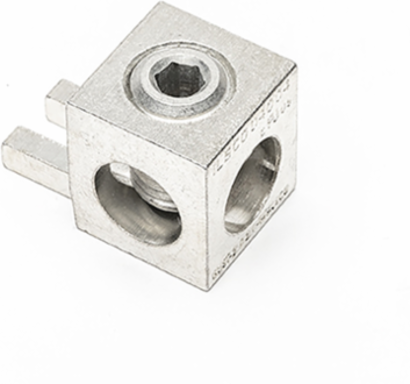

Square D NQ100AN Neutral Terminal Kit, 100A for AWG 2/0-14, 22 kA Short-Circuit Rating
- MPN: NQ100AN
- UPC: 785901882831
- PPN: SCH-NQ100AN
CAD
$66.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for reliability and efficiency, this neutral terminal kit from Schneider Electric is an essential accessory for NQ/NF panelboards. With a line rated current of 100A, it accommodates a range of wire gauges from AWG 2/0 to AWG 14, ensuring compatibility with various installations. The kit includes necessary components such as lugs and screws, and is engineered to withstand short-circuit conditions up to 22 kA, making it a robust choice for your electrical systems. Additionally, this product is compliant with environmental standards, being mercury and toxic heavy metal free, though it does carry a warning regarding potential exposure to lead and lead compounds.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Line Rated Current
- 100-100 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Awg Gauge
- 4 AWG...2/0 AWG aluminium/copper, 14 AWG...6 AWG aluminium/copper
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 4
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- terminal kit
- Range Of Product
- Square D
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Tightening Torque13.5-13.5 N.m 21.2-67.4 mm² (4 AWG...2/0 AWG), 3.4-3.4 N.m 2.1-13.3 mm² (14 AWG...6 AWG)
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Market SegmentationCommercial
Energy Efficiency OptimizedFalse
Product Destinationneutral bar
Provided Equipmentlug 1screw 2
ReturnabilityYes
Short-circuit Withstand22 kA
Package Weight(Lbs)0.5 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal kit
- Range Of Product
- Square D
Provided Equipmentlug 1screw 2
