Schneider Electric TM1STNTCTN6201P NTC 1,5m IP68 6x20 TPE w/ strap Grey
- MPN: TM1STNTCTN6201P
- PPN: SCH-TM1STNTCTN6201P
CAD
$10.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

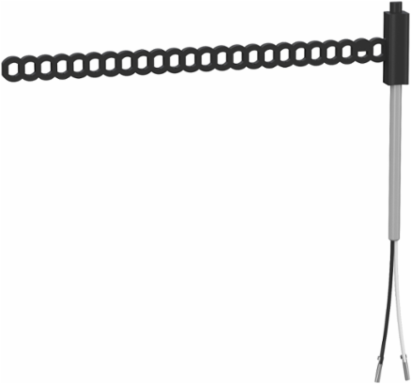

This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 50 to 110 degrees Celsius. This temperature probe has an IP 68 rate and is equipped with a 1.5-meter two-conductor cable, and with a strap. It is an NTC probe. It is furnished with 2-conductor cable for controller side for electrical connection. The cable measures 1.5m. It measures 20mm long, 6mm wide, and weighs 0.152/kg. It is made to control temperature in HVAC or Pumping Applications. It is sold in a 100-piece package. It has a clip-on fixing mode. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
Physical Attributes
| Cable Length | 1.5 m +/- 3 %) |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Fixing Mode | clip-on |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M171/M172 |
| Sustainable Packaging | Yes |
| Height Nominal | 6 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Connections - Terminals | cable with wire end ferrule |
| Package Weight(Lbs) | 18.0 g |
| Warranty (In Months) | 18 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Stocking Flag | Y |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Product Contributes To Saved And Avoided Emissions | No |
| Electrical Connection | 2 conductors cable controller side |
| Mounting Support | cables |
| Product Specific Application | temperature control |
| Returnability | No |
| Temperature Probe Type | NTC |
| Width Nominal | 20 mm |
| Accessory / Separate Part Type | probe |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8533408070 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP68 |
| Reach Free Of Svhc | Yes |
General Attributes
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC002081 |
|---|
| ETIM 9 | EC002081 |
|---|
