Killark NVSLCSG25RXG LED Strobe Light Fixture, 3/4 Inch Ceiling Mount, IP66, 120-240VAC
- MPN: NVSLCSG25RXG
- UPC: 783936070629
- PPN: HBL-NVSLCSG25RXG
- UNSPSC: 39111706
CAD
$1183.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

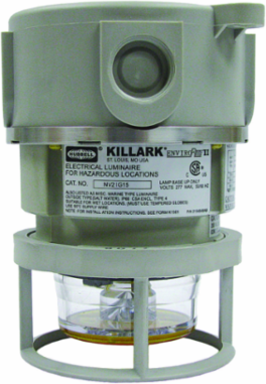

NV2 Series - Gray Non-Metallic Corrosion Resistant Compact Steady LED Light Fixture (LED Included) - 3/4 Inch Ceiling Mount With Red Strobelight And Guard - 120-240VAC At 50/60Hz
Features
- NVSL Series LED with very compact profile and 50,000 hours expected life steady - on or flashing.
- NVSZ Series Xenon with 10,000 hours expected life flashing only.
- LED utilizes inverted cone design to provide full 360 degree coverage for more light projection.
- LED and Xenon available in five colors colors - red, green, amber, blue and clear.
- Flash rate for LED is 7 micro flashes approximately every second for increased visual perception.
- Xenon flash rate 60 to 80 per minute
- Can be mounted in any orientation including lens in the UP or SIDE positions.
- Materials: High strength 30% glass-filled thermoset polyester body with Lexan® lens. Resists corrosive effects of most chemicals, hydrocarbons and solvents
- Designed for indoor and outdoor applications
- The NVSL Series LED Strobe is designed for warning and signaling applications. This fixture is made with a high strength thermoset polyester housing with polycarbonate lens for maximum corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 3/4" |
| Optic Type | Polycarbonate Globe - Red |
| Special Features | The NVSL Series LED Strobe is designed for warning and signaling applications. This fixture is made with a high strength thermoset polyester housing with polycarbonate lens for maximum corrosion resistance, making them suitable for harsh and hazardous environments. |
| Finish Type | Powder Epoxy Paint |
| Lamp Type | Steady |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | RED LED ST 120-240VAC CEIL+GRD |
| Harmonization Code | 8531809051 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Polyester, Fiberglass Reinforced |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936070629 |
| Hazardous Rating(s) | Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Division 2, Groups F, G;Class III, Divisions 1 & 2 |
|---|---|
| IP Rating | IP66 |
| Mounting | Ceiling |
| Voltage Rating | 120-240 VAC |
| Frequency Rating | 50/60 Hz |
| Mounting Type | Ceiling |
| Class Code | D20 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | A |
| Sub Class Code | D20D202 |
| Light Source | LED |
| Series | NV Series |
| BOX SIZE | (in) |
| NAICS Code | 3351222100 |
