nVent Caddy PEKLDEF nVent CADDY Pyramid Light-Duty Equipment Support Frame Extension Kit
- MPN: PEKLDEF
- UPC: 784805073574
- PPN: CAD-PEKLDEF
- UNSPSC: 30191609
CAD
$515.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

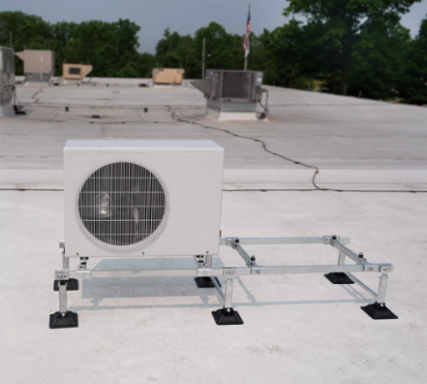

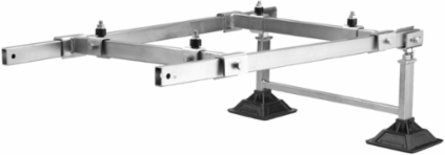

Kit includes two post-base assemblies, frame and equipment-support clamps for easy attachment to nVent CADDY Pyramid Light Duty Equipent Support Kit. Custom equipment support lengths by attaching the Pyramid Light Duty Extension Kit
Features
- System takes 80% less time to install than using other standard options on the market

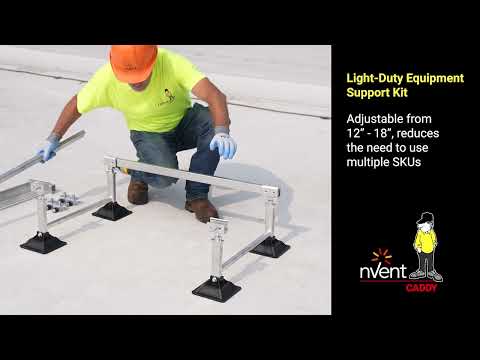

- Easily adjusts from 12 -18 in (305 -457 mm), reducing the need for multiple SKUs
- Increased adjustability enables flexibility to move bars, sliding the kit as needed
- Extension Kit allows for pre-assembly and endless gang-ability of units linked together
- Extension Kit is 8.4 in (213 mm) longer than four-post kit to allow for mounted equipment to be serviced in place
- Evenly distributes load and avoids damaging roof membrane with nVent CADDY PEK-style foam bottom feet
- Product load rating can handle a wide range of equipment BTU outputs/sizes
- Hot dip galvanized construction and hardware provide superior corrosion resistance in demanding environments
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Finish | Hot-Dip Galvanized |
| Height (H) | 305 |
| Post Base (A) | 152 mm x 2 pc |
| Cross Bar Assembly (C) | 521 mm x 2 pc |
| Surface Area | 0.046 |
| Ultimate Static Load (F) | 1,779 |
| Material | Steel |
|---|---|
| Temperature | -34.4 |
| Length (L) | 49.8 |
| Square Tube (B) | 1224.28 mm x 2 pc |
| Width (W) | 660 |
| Unit Weight | 11.5 |
| Static Load Safety Factor | 3:1 |
