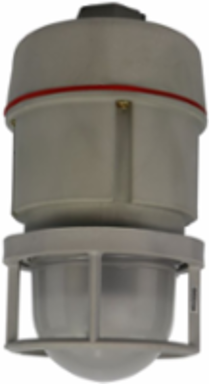

Killark NVL230A2G Non-Metallic LED Hazardous Fixture, 3/4 Inch Pendant Mount, 1796 Lumens, IP66
Killark NVL230A2G Non-Metallic LED Hazardous Fixture, 3/4 Inch Pendant Mount, 1796 Lumens, IP66
- MPN: NVL230A2G
- UPC: 783936175171
- PPN: HBL-NVL230A2G
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$642.31/ EA
Description
NVL Series Non-Metallic Corrosion Resistant Hazardous Location LED Fixture, 3/4" Pendant Mount With Guard
Features
- Energy and labor-saving LED
- High Ef?cacy (lumens per watt)
- Compact Size
- Type 3, 4, & 4X Rated
- IP66 Marine Rated
- ABS Approved
- Resists corrosive effects of most chemicals, hydrocarbons and solvents
- NVL Series - Approx. 2000 Lm - Universal Voltage - Pendant Mount - 3/4" NPT entry - With Guard. Designed specifically for corrosive & wet NEMA 4X and hazardous environments. NVL Series non-metallic light fixtures combine an outstanding balance of strength, stiffness, toughness and electrical properties. Corrosive resistant body molded from 30% glass-filled thermoset polyester. Diffuse polycarbonate globe that softens the light while providing impact protection. Accessories include polycarbonate dome reflectors and wall extension.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Division 2, Groups F, G;Class III, Divsions 1 & 2
- IP Rating
- IP66
- Optic Type
- Polycarbonate Globe - Diffused
- Engineering Drawing 1 Display Text
- NVL Pendant Mount Engineering Drawing
- Finish Type
- Natural
- Mounting Type
- Pendant
- Wattage
- 15 W
- Class Code
- D20
- Freight Class Code
- 10970001
- Image Actual Or Representative
- A
- Sub Class Code
- D20D202
- Lumen Range
- 0-2,000 lm
- Light Source
- LED
- Series
- NVL Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936175171
ColorGray
Hub Size3/4"
Lumens1796
Voltage Rating120-277 VAC
Color Temperature5000 K
Frequency Rating50/60 Hz
Nema Rating3, 4, 4X
ARRA CompliantContact Manufacturer
Description - InvoiceNVL 2K LUMENS 3/4 NPT PNDT MNT GUARD
Harmonization Code9405426000
MSDS FlagNo
CSA File NumberLR11713
Lumens Per Watt120
MaterialGlass Reinforced Thermoset Polyester
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
