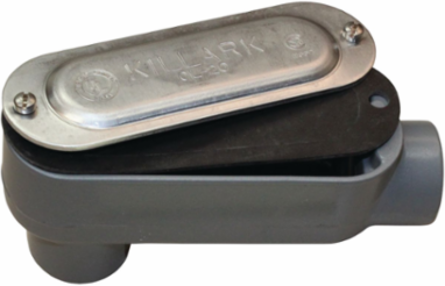

Killark OLB-5MCG Malleable Iron Conduit Body with Cover & Gasket, 1-1/2 Inch Hub, 36 Cu. In. Volume
- MPN: OLB-5MCG
- UPC: 783936050058
- PPN: HBL-OLB-5MCG
- UNSPSC: 39131708
CAD
$252.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series - Malleable Iron Conduit Body With Cover And Gasket - LB Type - Hub Size 1-1/2 Inch - Volume 36.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 36 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 5.875 in
- Length
- 10.75 in
- Type
- Conduit Body With Cover & Gasket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DURALOY 5 K-PAK SERIES 1 1/2 TYPE LB
- Harmonization Code
- 7307199060
- Lead Time
- 70 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.600 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- NAICS Code
- 3359323110
Dimensions10.75 in x 5.75 in x 5.875 in
ColorGray
Hub Size1-1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 36 cu. in.
Width5.75 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
Gross Weight with Packaging4.3
MaterialIron
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936050058
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
