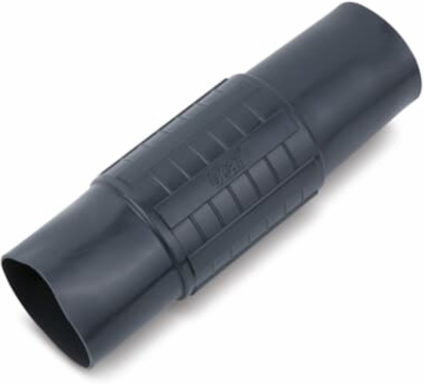

Ocal CPL3/4-G Conduit Coupling
Ocal CPL3/4-G Conduit Coupling
- MPN: CPL3/4-G
- PPN: T-B-CPL3/4-G
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$21.04/ EA
Description
PVC Coated Conduit Coupling, 3/4 Inch/21 Metric Coupling Size, 1.53 Inch/38.91 Millimeters Minimum Length of Metal, 3.75 Inch/95.25 Millimeters Total Minimum Length Including Sleeve, Straight Threads, Pressure Sealing Sleeves, Blue Urethane Coating on Interior and Threads, Galvanized Rigid Steel, Gray
Features
- Nominal .002 inch (2 mil) blue urethane coating on interior and exterior
- Minimum .040 inch (40 mil) PVC coating is bonded to the exterior
- Straight threads (NPS)
- Molded ribs on outer coating for easy installation, up to and including 4 inch
- Pressure sealing sleeves protect your connection
Specifications
European Specifications (ETIM)
- ETIM
- EC000939 Coupler for installation tubes
- Material quality
- Steel
- Model
- Thread
- Two piece
- N
MaterialMetal
Surface protectionContinuously galvanized
For nominal tube diameter21mm
With inspection opening and coverN
North American Specifications (UNSPSC)
- UNSPSC
- 39131707 Electrical conduit coupling
- Brand Name
- Ocal
- Special Features
- Pressure-Sealing Sleeves Protect Your Connection
- Trade Size
- 3/4 Inch/21mm
- Material
- Steel
IGCC5548 Electrical conduit coupling
TypeConduit Coupling
ApplicationCorrosion-Protected Connections for Conduit Sections
Length3.75 in ; 95.25 mm
ColorGray
Packaging
- Inner Dimensions (inches)
- xx
- Outer Dimensions (inches)
- 15.3x13.75x8.5
Outer Quantity90
Weight Uom0.24 lbs. Each
