Hubbell

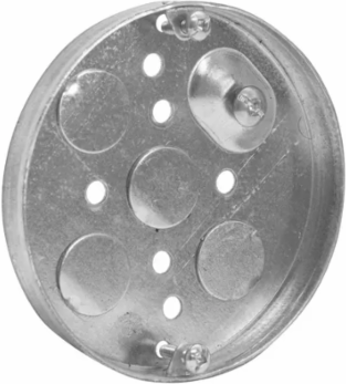

Hubbell H56111BAR Round Pan Box, 4 Inches Diameter, 0.5 Inches Deep

Round Pan Box, 4 Inches Diameter, 0.5 Inches Deep
  • MPN: H56111BAR
  • UPC: 805035056059
  • PPN: HBL-H56111BAR

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$7.40/ EA

Description

Round Pan Box, 4 Inches Diameter, 0.5 Inches Deep

Features

  • eaturing a slim 1/2-inch depth, this round pan box is specifically engineered for mounting directly to ceiling joists or wall studs where depth is extremely limited. It provides the perfect solution for installing sleek, modern LED puck lights or surface-mounted fixtures without needing to cut large, deep holes in your structural headers or drywall.
  • Stamped from high-grade, pre-galvanized steel, this 4-inch round box offers superior mechanical strength and corrosion resistance. Unlike plastic alternatives, this metallic enclosure provides a permanent, fire-resistant housing that maintains grounding continuity and structural integrity for the entire life of your electrical installation.
  • This model comes equipped with a heavy-duty, adjustable bar hanger that spans from 14-1/4 inches to 22-1/2 inches, allowing for precise, centered placement between standard 16-inch or 24-inch on-center framing. The integrated sliding bracket eliminates the need for extra wood blocking, significantly reducing installation time for DIYers and professional contractors alike.
  • Fully UL Listed for use as a junction box or for fixture support up to 50 lbs, this Hubbell RACO component ensures your project meets all National Electrical Code (NEC) requirements. The included ground screw and robust mounting ears provide a secure, code-compliant foundation for sconces and lightweight ceiling fans, giving you peace of mind that your lighting is safely anchored.

Specifications

Diameter
4 in
Material
Steel
Knockouts - Bottom
4 x 1/2 in
Type
Octagonal Pan Box
Finish Color
Gray
Compliance
CSA Certified
Depth0.5 in
Weight0.26 lb
Configuration1-Gang
Wiring SystemConduit
Construction StyleDrawn
Raised GroundYes

Downloads
