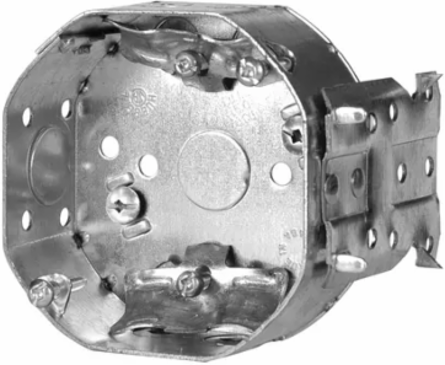

Hubbell H54151LBBAR 4 In. Octagon Box, 1-1/2 in. Deep, 15 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO, Cable Pryouts, NMD90 (50-Pack)
Hubbell H54151LBBAR 4 In. Octagon Box, 1-1/2 in. Deep, 15 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO, Cable Pryouts, NMD90 (50-Pack)
- MPN: H54151LBBAR
- UPC: 805035056806
- PPN: HBL-H54151LBBAR
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$7.28/ EA
Description
4 In. Octagon Box, 1-1/2 in. Deep, 15 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO, Cable Pryouts, NMD90 (50-Pack)
Features
- The Hubbell (TradeSelect) 54151LBBAR is a 4-inch octagonal steel box designed for mounting lighting fixtures or acting as a junction point in residential and commercial wiring. Its octagonal shape is the industry standard for providing a stable mounting surface for round or square light fixture canopies, ensuring a professional, flush-to-ceiling finish.
- With a 1-1/2 inch ($38\text{ mm}$) depth and a 15.0 cubic inch capacity, this box is sized for standard NMD90 (Romex) wiring. It offers enough volume for a single light fixture connection and its associated conductors, making it a "go-to" choice for Canadian contractors installing pot lights, hallway fixtures, or wall sconces in shallow ceiling or wall cavities.
- The "BAR" (or BAR/B) suffix indicates it includes a built-in side mounting bracket. This bracket features a 7/16-inch setback, perfectly aligned for a single layer of 1/2" drywall. The bracket allows you to nail or screw the box directly to the side of a wood or steel stud, providing a much more rigid and secure mounting point than a bracketless box.
- Specifically designed for the Canadian residential market, the box comes equipped with pre-installed NMD cable clamps. These "pry-out" style entry points allow you to secure NMD90 14/2 or 12/2 cables quickly without needing to buy separate connectors. This speeds up the "rough-in" phase of construction and ensures your cable strain relief meets CEC (Canadian Electrical Code) standards.
Specifications
- Capacity
- 15 cu in
- Depth
- 1.5 in
- Conductor Cable Entry
- NMD Clamp
- Knockouts End
- 1 x 1/2 in
- Bracket Setback
- 0.4375 in
- Wiring System
- Non-Metallic Sheathed (NMD)
- Ground Screw
- Raised
- Drawn or Welded
- Welded
- Color
- Gray
Size4 in
Knockout Size1/2 in
Number of Gangs1-Gang
Knockouts Bottom1 x 1/2 in
Weight0.56 lb
Bracket TypeSide Bracket, B
MaterialSteel
ComplianceCSA Certified
