Nutek F-WSW-US Nonmetallic Boxes
- MPN: F-WSW-US
- UPC: 772197003361
- PPN: T-B-F-WSW-US
CAD
$12.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

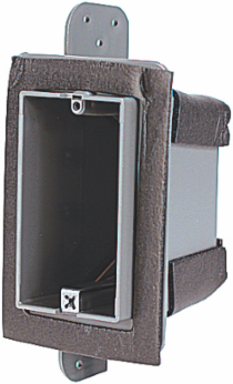

One-Gang Airtight Device Box, Volume 18 Cubic Inches, Length 3-3/4 Inches, Width 2-1/4 Inches, Depth 2-3/4 Inches, Color Gray, Material Non-Metallic, Cable Entries 4. Fire resistance rating: 2 hours.
Specifications
European Specifications (ETIM)
| ETIM | EC002601 Box/housing for built-in mounting in the wall/ceiling |
|---|---|
| Shape | Rectangular |
| Equipped with | None |
| Width | 57.15mm |
| Mounting switching equipment | Screwing |
| Pipe locking | N |
| Inlet from the rear | N |
| Colour | Grey |
| Cover attachment | Not applicable |
| Mounting method | Other |
|---|---|
| Construction type | Device connection box (round/square) |
| Length | 95.25mm |
| Depth | 69.85-69.85mm |
| With screws | N |
| Pipe locking optional | N |
| Material | Plastic |
| Cover | None |
| Sealable | N |
North American Specifications (UNSPSC)
| UNSPSC | 39121308 Outlet box |
|---|---|
| Brand Name | NuTek |
| Application | For use with non-metallic sheathed cable |
| Material | Non-Metallic |
| Cubic Capacity | 18 Cubic Inches |
| IGCC | 4433 Outlet box |
|---|---|
| Type | Nonmetallic Boxes |
| Standard | UL E11461 |
| Color | Gray |
Packaging
| Outer Quantity | 100 |
|---|---|
| Weight Uom | 25 lbs. per 100 |
| Outer Dimensions (inches) | 21.8x15.4x15.7 |
|---|
