Leviton

Leviton 5R1UM-S03 OPT-X™ 1000i SDX 1RU Distribution and Splice Enclosure, empty, with sliding tray; Accepts up to (3) SDX adapter plates or (3) SDX MTP cassettes and accepts up to (3) splice trays

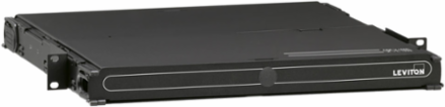

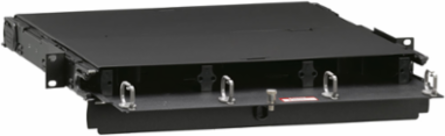

OPT-X™ 1000i SDX 1RU Distribution and Splice Enclosure, empty, with sliding tray; Accepts up to (3) SDX adapter plates or (3) SDX MTP cassettes and accepts up to (3) splice trays
OPT-X™ 1000i SDX 1RU Distribution and Splice Enclosure, empty, with sliding tray; Accepts up to (3) SDX adapter plates or (3) SDX MTP cassettes and accepts up to (3) splice trays
  • MPN: 5R1UM-S03
  • UPC: 078477516850
  • PPN: LEV-5R1UM-S03

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1181.25/ EA

Description

The OPT-X 1000i SDX Rack-Mount Enclosure allows for inter-connect or cross-connect between backbone cable and active equipment while using minimum rack space in a frame or cabinet setting. The enclosure's features and design allow for easy field termination of connectors, splicing, or pre-terminated plug-n-play solutions. The fiber enclosure is primarily used in data centers, equipment rooms, and telecommunication rooms

Features

  • 15-inch depth for high-density fiber termination and/or splicing
  • Stackable and adjustable fiber rings simplify cable organization
  • Front saddles pivot for improved patch cord routing
  • Removable front and rear covers offer better access to the interior of the enclosure
  • Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
  • Sliding tray (an option in 1RU and 2RU enclosures) glides forward and backward for front and rear bulkhead access after installation, and removes completely from enclosure for ease of field terminations and splicing
  • Constructed of 16-gauge steel, powder-coated black
  • 1RU or 2RU Retrofit Sliding Trays, sold separately, allow for higher-density applications using HDX MTP® Cassettes or HDX Adapter Plates (sliding tray does not accommodate splice trays)
  • Convert to HDX cassettes or adapter plate using conversion bracket (sold separately)

Specifications

Specifications

Country of Origin
Mexico
RoHS CompliantFalse
