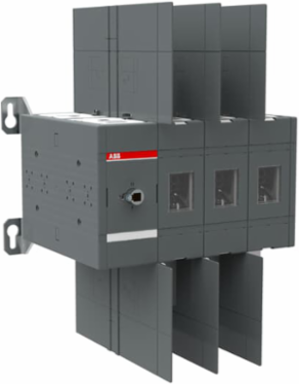

ABB OT800U03C OT800U03C CHANGE-OVER SWITCH
- MPN: OT800U03C
- UPC: 804325534994
- PPN: ABB-OT800U03C
- UNSPSC: 39122233
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
800A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.
Specifications
Dimensions
| Product Net Width | 400 mm15.75 in |
|---|---|
| Product Net Depth / Length | 335 mm13.19 in |
| Product Net Height | 376 mm14.8 in |
|---|---|
| Product Net Weight | 38.11 kg84.02 lb |
Technical
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A |
|---|---|
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | 1000 V |
| Power Loss | 48 W |
| Handle Color | Black |
| Switches Operating Mechanism | Mechanism at the End of the Switch03 (Left Side) |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Standards | UL 98 / IEC60947-6-1 |
| Number of Poles | 3 |
| Mechanical Durability | 3000 cycle |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A |
|---|---|
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Pollution Degree | 3 |
| Handle Type | Handle and shaft not included |
| Distance Between Phases | Standard |
| Operating Mode | Front operated |
| Mounting Type | Base mounting |
| Degree of Protection | Front IP20 |
| Transition Type | Open |
Classifications
| Object Classification Code | Q |
|---|---|
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
|---|---|
| eClass | V11.1 : 27371403 |
Environmental
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Environmental Information | 1SCC303050D0201 |
|---|
Circular Value
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
|---|---|
| REACH Declaration | 1SCC011021D0201 |
| Environmental Information | 1SCC303050D0201 |
|---|---|
| RoHS Information | 1SCC011020D0201 |
Technical UL/CSA
| Ampere Rating | 800 A |
|---|
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 250 Hp(acc. to UL 480 V) 500 Hp(acc. to UL 600 V) 500 Hp |
|---|
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Country of Origin | Finland (FI) |
| Customs Tariff Number | 85365080 |
|---|
