nVent Hoffman P2AGBHK PROLINE G2 EZ-Load Glide Blocks
- MPN: P2AGBHK
- UPC: 783510340735
- PPN: HOF-P2AGBHK
CAD
$79.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

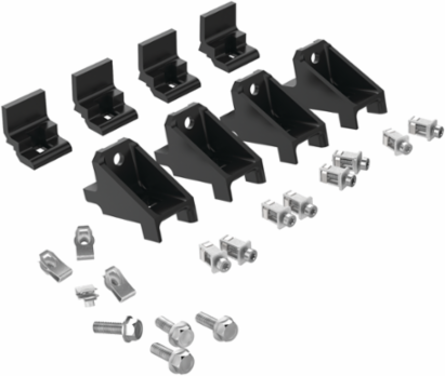

PROLINE G2 EZ-Load Glide Blocks
Features
- A complete set of EZ-Load Glide Blocks is supplied with each full-height mounting subpanel; this set of four blocks serves as a replacement set
- Support subpanel installation vertically from the front, rear, or side, or can be used to load a subpanel while the subpanel is horizontal
- Glide blocks made from a high performing, glass re-enforced polymer, and consist of integrating front and rear sections
- All mounting hardware included; glide blocks secure to frame with BV-M6 fasteners, and to the subpanel with metric hex bolts
- For vertical front loading, the rear portion of the glide blocks can be attached to the frame prior to subpanel insertion to set a defined panel depth; the front portion of the glide blocks use the frame rails as a guide, gliding smoothly to the preferred depth
- For horizontal loading, the frame can be lowered over the mounting subpanel; in this configuration the load of the subpanel is in a safe, static state
- If the subpanel is used in the rear most position, the rear glide blocks will not be used, as the frame supports the subpanel
- If two subpanels are used in the enclosure in a back-to-back position the rear glide blocks will not be used
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Material
- Glass Fiber Reinforced Polymer
- Color
- Black
- Works With
- NEMA
Product FamilyProLine
Weight1.3
FinishSmooth Matte
