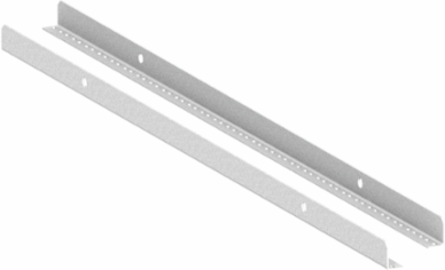

Nvent Hoffman P2ALB22 ProLine G2 Lifting Bars, 2200
Nvent Hoffman P2ALB22 ProLine G2 Lifting Bars, 2200
- MPN: P2ALB22
- UPC: 783510340551
- PPN: HOF-P2ALB22
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2120.46/ EA
Features
- Clear, Zinc-Coated structural steel bars
- Furnished in pairs, with the inclusion of bolts and washers for installation
- Does not require removal of enclosure top cover, and secures into the frame's corner blocks
- Can be used to lift joined enclosures up to 6 bayed enclosures (3000-mm total width); Load rating: 3000 lbs. (1360 kg) per enclosure
- Lifting Bars are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Finish
- Zinc Plated
- Works With
- NEMA
Product FamilyProLine
Weight88
Thickness (T)6.3
