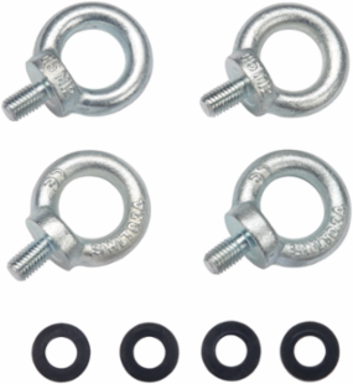

nVent Hoffman P2ALE ProLine G2 Lifting Eye, 2.98x2.14x1.18, Zinc Plated, Steel
- MPN: P2ALE
- UPC: 783510308766
- PPN: HOF-P2ALE
- UNSPSC: 39121334
CAD
$32.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Lifting Eyes designed for overhead lifting of ProLine G2 enclosures, or to secure the top to the frame. This ProLine G2 Lifting Eye, P2ALE item measures 2.98x2.14x1.18 inches with a material of Steel, Zinc Plated.
Features
- Lifting eyes thread into corner blocks in a frame
- Furnished in sets of four
- Lifting Eyes are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45 . Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
Documentation & Downloads
Specifications
Additional
| Load Rating (Straight Vertical Pull) | 750 lb (340 kg) |
|---|---|
| Height | 76 |
| Depth | 30 |
| Material | Mild Steel |
| Compliance | OSHA, ASME, ISA, ASTM |
| Product Family | ProLine |
| BABA | Contact Manufacturer |
| Load Rating (45 Degree Pull) | 500 lb (226 kg) |
|---|---|
| Width | 54 |
| Weight | 1.62 |
| Finish | Zinc Plated |
| Sub Brand | ProLine |
| Works With | NEMA |
