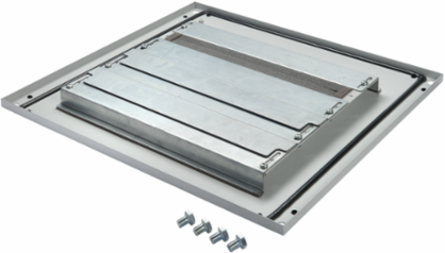

nVent Hoffman P2BGP88 ProLine G2 Gland Plates, fits 800x800mm, Painted
- MPN: P2BGP88
- UPC: 783510310332
- PPN: HOF-P2BGP88
- UNSPSC: 39121334
CAD
$253.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine G2 Gland Plates, fits 800x800mm, Painted
Features
- Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
- Sturdy, adjustable gland plates designed to bear the weight of a person
- Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
- Galvanized or painted versions
- Sealed to maintain NEMA Type 12 rating
- Gland Plates are finished with paint over plated surfaces
- Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
- Can be used without a base if casters, levelers or frame feet are installed
- Can be rotated 180 degrees for front or rear cable entry
- Installation hardware included
- Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
Documentation & Downloads
Specifications
Additional
- Number of Gland Plate Openings
- 6
- Finish
- Powder Coated
- Fits Frame Dimensions
- 800 x 800 mm
- Color Code
- RAL 7035
- Product Family
- ProLine
Material14-gauge (1.75 mm) mild steel
Weight37
ColorLight Gray
Works WithNEMA
Sub BrandProLine
